Siemens 6ES7134-0HF00-0XB0 Analog Input Module

Product manual:

Siemens 6ES7134-0HF00-0XB0 is an analog input module in the SIMATIC ET 200S series, used to receive and process analog signals from sensors and other devices. This module is designed for industrial automation systems and supports high-precision signal acquisition. The following is the detailed information of the module:
Product Overview:
Product type: Analog input module
Series: SIMATIC ET 200S
Order number: 6ES7134-0HF00-0XB0
Function: Used for processing analog signal inputs
Application: Suitable for various process control and data collection scenarios
Technical specifications:
Number of input channels: 8 analog input channels
Input signal type: configurable as voltage (e.g. 0-10V) or current (e.g. 4-20mA)
Resolution: Typically 16 bits
Input range: can be set according to configuration
Working voltage: usually 24V DC
Working temperature range: -25 ° C to+60 ° C, suitable for harsh industrial environments
Installation width: 30mm, compact design, easy to install in control cabinets or distributed I/O systems
characteristic:
High precision: Provides up to 16 bit resolution, suitable for precise analog signal processing.
Flexible configuration: Supports multiple input signal types to meet different application requirements.
Real time diagnostic function: equipped with LED indicator lights, providing status feedback, facilitating fault diagnosis and maintenance.
Reliability: High quality components ensure stable signal transmission and reduce the risk of failure.
Application scenarios:
Process control: widely used in manufacturing, process automation, energy management, and other fields to monitor and control various industrial processes.
Data collection: used for environmental monitoring, equipment status monitoring, and other scenarios, to collect simulated signals in real time for analysis.
Distributed I/O System: Used in conjunction with other SIMATIC ET 200S modules to expand the system's analog input capabilities and provide flexible signal processing solutions.

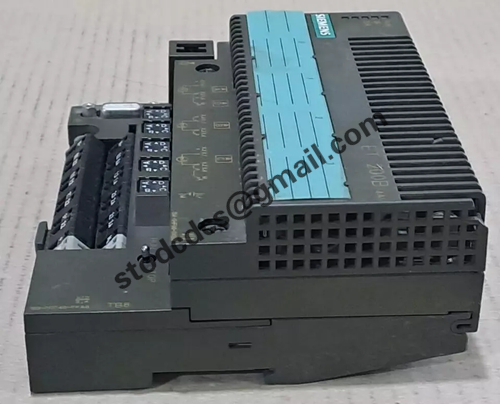

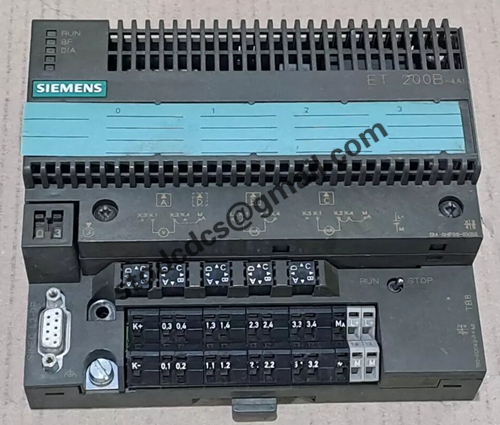

Product details picture:
