Siemens 6ES7133-0BL00-0XB0 Programmable Logic Controller Module

Product manual:

Siemens 6ES7133-0BL00-0XB0 is a PROFIsafe safety module in the SIMATIC ET 200S series, designed specifically for applications with high safety requirements, to achieve safety related digital input and output functions. The following is the detailed information of the module:
Product Overview:
Product type: PROFIsafe digital input/output module
Series: SIMATIC ET 200S
Order number: 6ES7133-0BL00-0XB0
Function: 4-channel safety related digital input and 4-channel safety related digital output
Security protocol: Supports PROFIsafe for secure communication through standard PROFINET or PROFIBUS networks
Technical specifications:
Number of input channels: 4 safety related digital inputs
Number of output channels: 4 safety related digital outputs
Input voltage: 24V DC
Output voltage: 24V DC
Output current: maximum 2A per channel
Security level:
SIL 3 (compliant with IEC 61508 standard)
PL e (compliant with EN ISO 13849-1 standard)
Fault protection: The module has short-circuit, open circuit, and overload protection functions, and performs fault diagnosis through LED display
Installation width: 30mm, suitable for compact installation space
Environmental temperature: -25 ° C to+60 ° C, suitable for harsh industrial environments

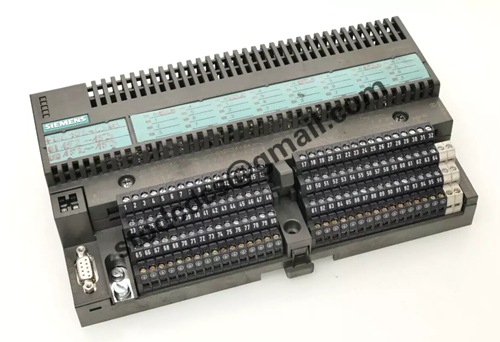

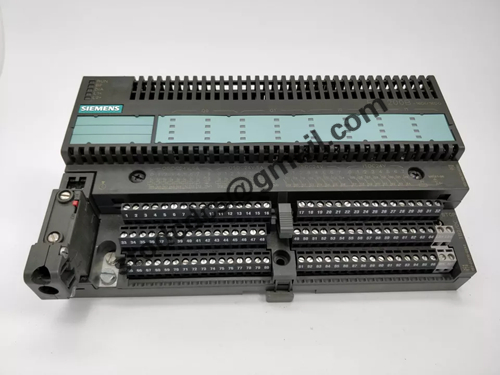

Product details picture:
