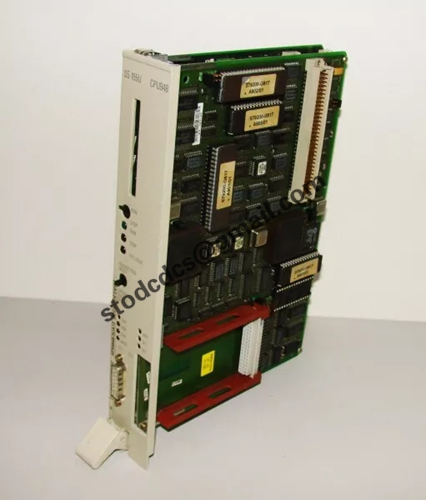

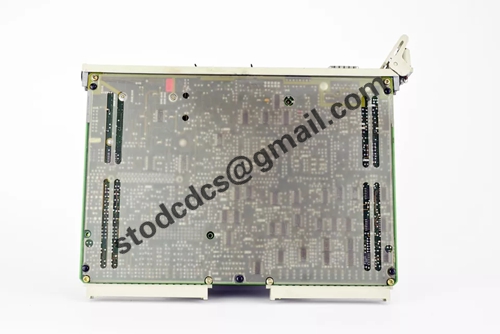

SIEMENS 6ES5948-3UA12 CPU module

Brand:Siemens
Model:6ES5948-3UA12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

SIEMENS 6ES5948-3UA12 CPU module

Product manual:

Main characteristics
Processing capability: Provides high-performance processing capability, suitable for application scenarios that require high-speed computing and complex control logic.
Memory: Equipped with sufficient program memory and data memory, supporting large and complex control programs.
Communication interface: It includes multiple communication interfaces and supports data exchange with other PLC modules and external devices.

For example, it may include PROFIBUS, PROFINET, and other industrial communication protocols.
Diagnostic function: The integrated diagnostic function is used to monitor the system status in real-time, detect faults, and provide diagnostic information for quick problem-solving.
application
Central control: As the core control unit of the system, it is responsible for executing control programs and achieving comprehensive control over the production process,

machinery and equipment, or other automation systems.
Data processing: Processing data from input modules, generating control instructions, and sending them to output modules.
System coordination: Coordinate various modules and devices in the system to ensure the normal operation and data consistency of the overall system.
Communication Management: Responsible for managing data communication with other PLC systems or external devices, ensuring accurate transmission and exchange of data.
Installation and use
Installation: Install the CPU module into the PLC rack, ensuring proper connection with other modules. Confirm that the power and signal connections are correct.
Configuration: Use Siemens provided configuration tools (such as STEP 7 or TIA Portal) to configure the CPU module, including setting control programs, communication parameters, etc.
Programming: Write and upload control programs, configure the working mode and operation logic of modules according to application requirements.
Maintenance: Regularly check the status and performance of modules, perform necessary maintenance and update operations, and ensure the stability and reliability of the system.
