Siemens 6ES5581-0ED14 processor module

Product manual:

Siemens 6ES5581-0ED14 is a processor module in the S5 series, used to perform logic control, data processing, and device communication functions in PLC systems. It is the core unit of the system, managing the processing and data transmission of all input and output signals.
Main functions and features:
Central Processing Unit (CPU):
This module is equipped with a central processing unit, responsible for executing user programmed logic instructions and controlling the operation of the entire automation system.
Memory:
Contains RAM or ROM storage for storing user programs and data. The memory capacity depends on the specific model and is suitable for complex control logic and a large number of I/O operations.
Programming and Debugging:
Siemens' STEP 5 programming software is required for programming. Users can control the logical functionality of the processor by writing ladder diagrams (LAD), function blocks (FBD), or statement tables (STL).
Provide debugging functions to help users detect errors in programs or optimize control processes.
Modular design:
As part of the S5 series system, 6ES5581-0ED14 can be combined with other modules such as I/O modules, communication modules, etc. to expand system functionality.
Communication ability:
Support communication with other modules, peripheral devices, or upper level computers to ensure efficient and stable data exchange.
High reliability:
This processor module has industrial grade reliability and is suitable for automation applications in harsh environments, ensuring long-term stable system operation.
Application areas:
Industrial automation: widely used in fields such as factory automation, process control, manufacturing, etc., to execute the core logical functions of control systems.
Production line management: Control various equipment on the production line to ensure automation and optimization of the production process.
Process monitoring and data collection: Processing real-time data and controlling critical equipment in complex production or process flows.

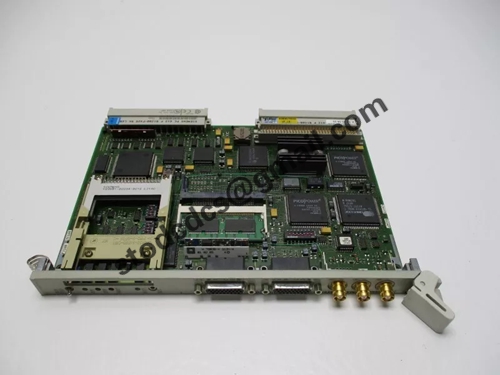

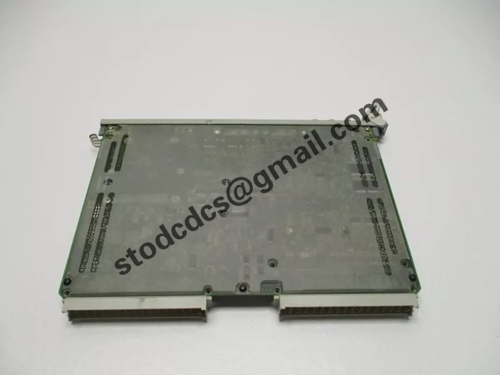

Product details picture:
