Siemens 6ES5470-8MD12 Input/Output Module

Product manual:

Siemens 6ES5470-8MD12 is an input-output module belonging to the S7-400 series, which combines analog input and output functions and is suitable for industrial automation systems. The following are the main features and functions of this module:
Main features:
Input/output channels:
Provides 8 analog inputs and 8 analog output channels, supporting multiple signal types including current (4-20 mA) and voltage (0-10 V).
Signal processing:
The input part has high-precision analog-to-digital conversion (usually 12 bits) to ensure the accuracy of signal acquisition.
The output part also supports high-precision digital to analog conversion to ensure signal stability.
Isolation characteristics:
It has electrical isolation function, improves the anti-interference ability of the system, and ensures the reliability of data.
Communication interface:
Connect to PLC through PROFINET or other Siemens bus systems to ensure fast data transmission.
Installation and configuration:
Adopting standard DIN rail installation for easy layout in the control cabinet.
Through Siemens' STEP 7 software for flexible configuration, users can customize input and output parameter settings.
Application areas:
Industrial automation: suitable for process control, equipment monitoring and regulation, providing real-time signal input and output functions.

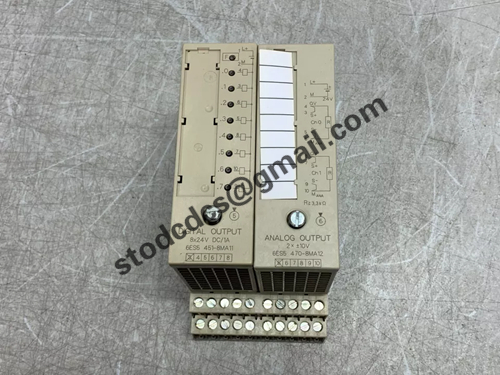

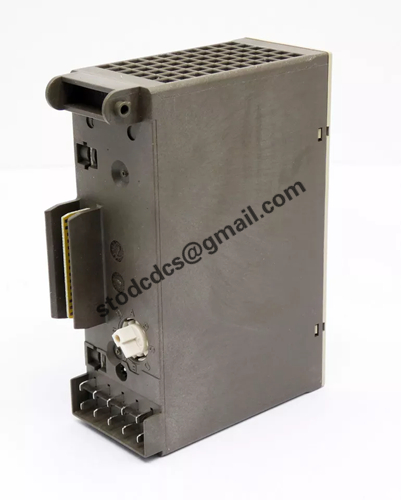

Product details picture:
