Siemens 6ES5470-7LB12 Analog Output Module

Product manual:

Siemens 6ES5470-7LB12 is an analog output module of the Siemens S5 series. The following is the detailed information of the module:
Siemens 6ES5470-7LB12 Analog Output Module
main features
Output channel: Provides multiple analog output channels (usually 4 or 8) for outputting analog signals, such as voltage or current signals.
Output range: Supports common analog output ranges, such as 0-10V, 4-20mA, etc., to meet different application requirements.
Resolution: High resolution, capable of accurately outputting analog signals to ensure control accuracy.
Isolation protection: It has electrical isolation function to prevent external signals from interfering with the PLC system.
Accuracy: Provides high-precision signal output, suitable for demanding industrial applications.
Application scenarios
Process control: Output analog signals in industrial process control systems to control equipment such as valves, frequency converters, heaters, etc.
Data acquisition: used to convert control signals in PLC systems into analog signals, which are supplied to other devices or systems for processing.
Experiment and Testing: Generate accurate simulated signals in a laboratory or testing environment to test and calibrate equipment.
Installation and operation
Installation: Install the analog output module into the rack of the Siemens S5 controller, ensuring that the module installation and docking comply with specifications.
Connection: Connect the analog output port to external devices to ensure electrical connections comply with industry standards.
Configuration: Use Siemens' configuration tool (such as STEP 5 software) to set module parameters, including output range and accuracy configuration.
Debugging: Test the analog output function to ensure that the module can accurately output the required analog signals and make necessary adjustments.

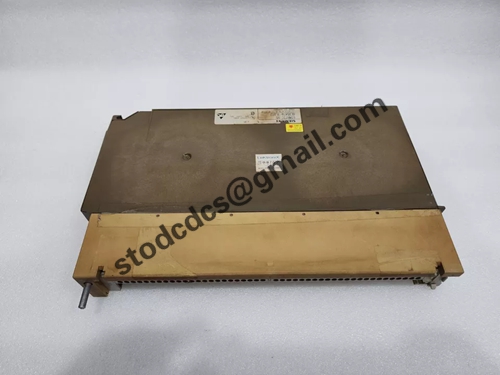

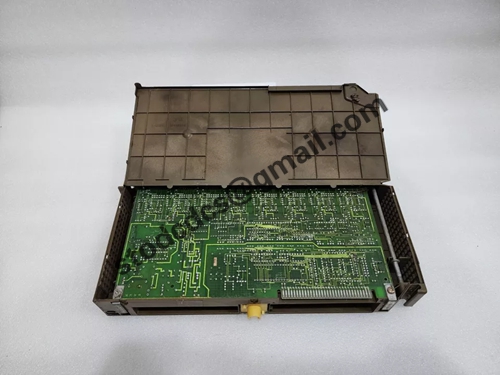

Product details picture:
