Siemens 6ES5466-3LA11 Analog Input Module

Product manual:

Siemens 6ES5466-3LA11 is an analog input module in the Siemens SIMATIC S5 series. This module is used to collect analog signals from various sensors or signal sources, and convert these signals into digital data that can be processed by the PLC system. This is crucial in industrial automation and process control, especially in applications that require precise measurement and control.
Main features:
Model: 6ES5466-3LA11
Series: SIMATIC S5
Module type: Analog Input Module
Function:
Analog signal acquisition: Collecting voltage or current signals from sensors or other analog signal sources.
Signal conversion: Convert analog signals into digital signals for processing by the PLC system.
Interface compatibility: Compliant with SIMATIC S5 series standard interfaces, ensuring compatibility with other modules and system components.
Technical specifications:
Channel count: Typically configured with 6 or 8 analog input channels, depending on module design.
Input signal type:
Supports multiple types of analog input signals, such as voltage (0-10V) and current (4-20mA).
It can be configured as a single ended input or differential input to meet different application requirements.
Input range and accuracy: Provides high-precision analog signal acquisition, the specific input range and accuracy depend on the design of the module.
Interface standard: Complies with SIMATIC S5 series standard interfaces and supports interoperability with other S5 series modules.
Application scenarios:
Industrial automation: used to collect and process various analog signals on the production line, such as temperature, pressure, flow rate, etc.
Process control: Real time monitoring and adjustment of process parameters during the production process to ensure the stability and accuracy of the process.
System integration: As a part of the PLC system, it collaborates with other modules to complete complex automation control tasks.

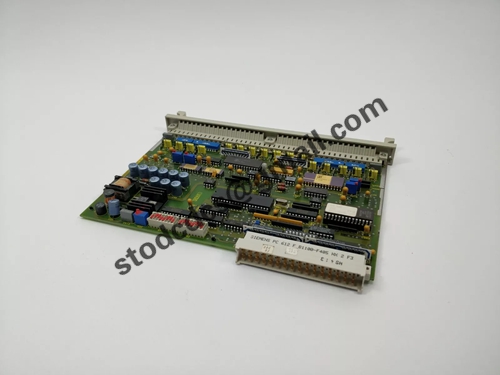

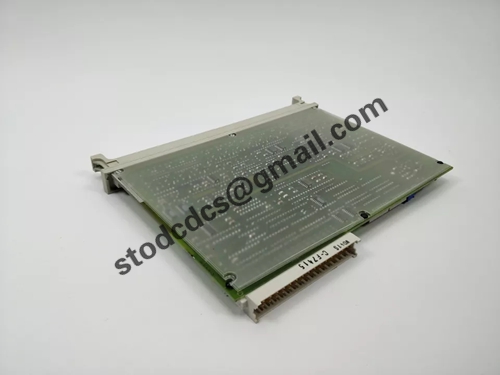

Product details picture:
