Siemens 6ES5451-7LA11 Terminal Module

Product manual:

Siemens 6ES5451-7LA11 is a terminal module of SIMATIC S5 series, mainly used for wiring and signal connection in industrial automation systems. Terminal modules play an important role in automation systems, providing physical connection points with on-site devices.
Main features:
Model: 6ES5451-7LA11
Series: SIMATIC S5
Module type: Terminal Module
Function:
Wiring connection: Provides physical connection points between other modules and external devices of the PLC system.
Signal transmission: Ensure reliable transmission of signals between different modules and devices.
Wiring management: Simplify system wiring, facilitate maintenance and connection.
Application scenarios:
Industrial automation: used to connect input/output modules and external devices in PLC systems to achieve system functions.
Process control: Connect with sensors, actuators, and other devices in automation systems to ensure the effectiveness of control and monitoring.
System integration: As a connecting component of the PLC system, it ensures signal transmission between modules and overall system stability.
Technical specifications:
Interface standard: Complies with SIMATIC S5 series standard interfaces to ensure compatibility with other S5 series modules.
Functional specifications: Provide adaptation and wiring functions, depending on module design.
Installation and use:
Installation: Install the 6ES5451-7LA11 terminal module into the SIMATIC S5 series rack and connect it to other modules through the rack's backplane.
Wiring: Connect the signal wires of external devices to the terminal blocks of the terminal module according to the system wiring requirements.
Maintenance: Regularly check the connection status of the terminal module to ensure the stability and reliability of signal transmission.

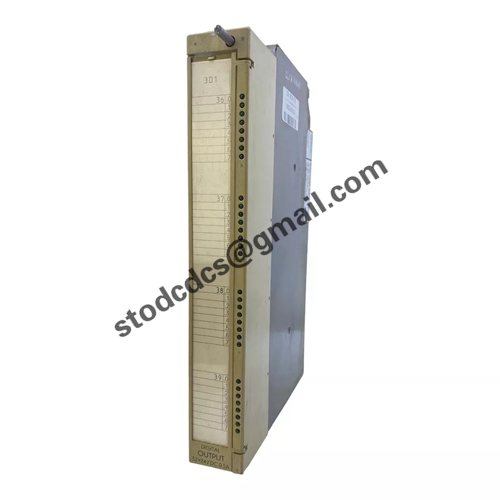

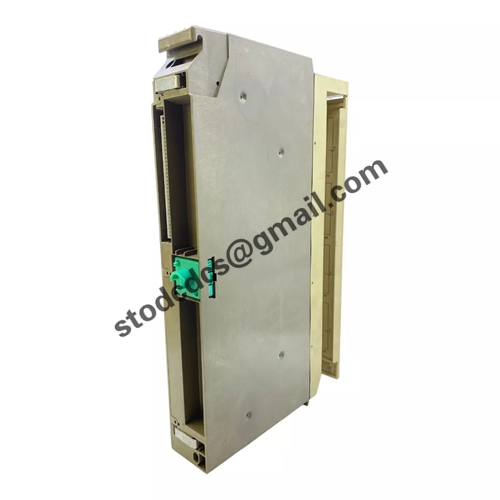

Product details picture:
