SIEMENS 6ES5451-4UA12 Digital Output System Panel

Product manual:

Siemens 6ES5451-4UA12 is a digital output system panel of the Siemens S5 series. The following is the detailed information of the module:
Siemens 6ES5451-4UA12 Digital Output System Panel
main features
Module type: Digital output system panel, used for Siemens S5 PLC system.
Protection function: It has overload and short circuit protection functions to ensure the safety of output channels and systems.
Indication function: Equipped with status indicator lights for easy monitoring of the working status of each output channel.
Application scenarios
Automation control: Control various external devices such as solenoid valves, relays, actuators, etc. in a PLC control system.
Production line: used to control the equipment and mechanical actions on the production line, such as starting, stopping, or adjusting the equipment.
Process control: Controlling actuators and feedback devices in industrial processes to achieve automated regulation and control.
Installation and operation
Installation: Install the digital output system panel into the rack of the Siemens S5 controller, ensuring that the module is properly docked and secured.
Wiring: Connect external devices to the output ports of the module using standard electrical connections.
Configuration: Use Siemens' configuration tool (such as STEP 5 software) to set module parameters and ensure compatibility with the PLC system.
Debugging: Test the output function to ensure that the module can correctly control external devices and make necessary adjustments.

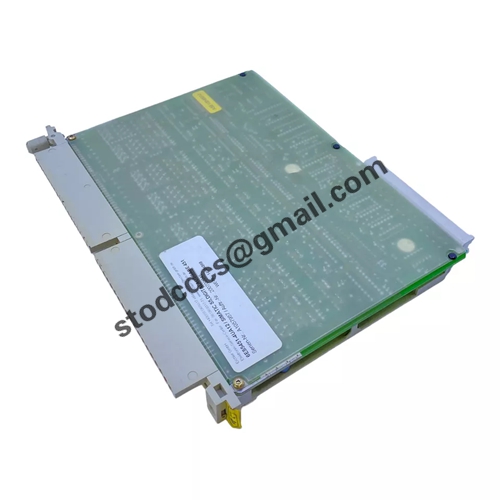

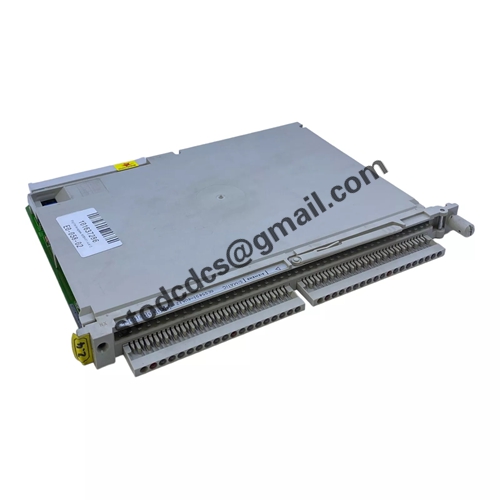

Product details picture:
