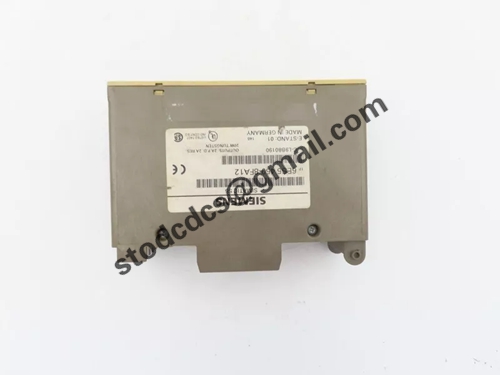

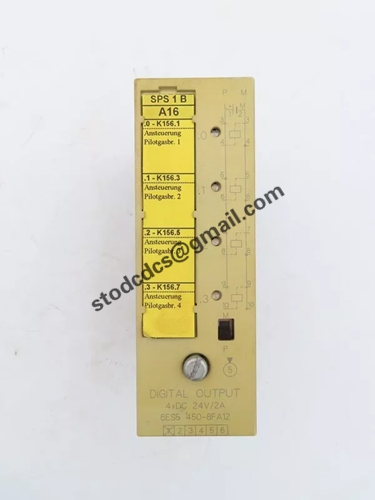

Siemens 6ES5450-8FA12 Digital Output/Output Module

Brand:Siemens
Model:6ES5450-8FA12
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES5450-8FA12 Digital Output/Output Module

Product manual:

Main features:
Series: S5 Series
Model: 6ES5450-8FA12
Type: Mixed I/O Module
Number of channels:
Digital input channels: 16
Digital output channels: 16
Input voltage: 24V DC (direct current)
Output voltage: 24V DC (direct current)
Output current: Maximum 0.5A per output channel
Function:
Digital input: Receive digital signals from external devices such as sensors, buttons, etc., and transmit them to the PLC system.
Digital output: Convert control signals in a PLC system into digital signals that can drive external devices such as relays, switches, lights, etc.
Supports efficient data collection and control, suitable for various industrial automation application scenarios.
Process control: During production and processing, receive sensor signals and output control signals to adjust equipment status in real-time.
Technical parameters:
Input voltage: 24V DC
Output voltage: 24V DC
Number of input channels: 16 digital input points
Number of output channels: 16 digital output points
Maximum output current: 0.5A maximum per channel
Response time: The module has fast response capability and is suitable for application scenarios that require real-time control.
Electrical isolation: Provide electrical isolation to ensure the safe transmission of signals and reduce electrical interference.
compatibility:
Applicable system: Siemens S5 series PLC system, such as S5-115U, S5-135U, S5-155U, etc.
Precautions for use:
Load requirement: Ensure that the load current of the connected external devices does not exceed the maximum output current of the module to avoid overload damage to the module.
Cable connection: Connect the wires correctly to avoid short circuits or signal interference, ensuring the module works properly.
Anti interference measures: In environments with strong electromagnetic interference, use shielded cables or other anti-interference measures to maintain the stability of signal transmission.
Regular maintenance: Regularly inspect and maintain modules and their connected devices to ensure their normal operation and accurate signal transmission.
