Siemens 6ES5440-8MA12 Digital Output Module

Product manual:

Main features:
Series: S5 Series
Model: 6ES5440-8MA12
Type: Digital Output Module
Number of output channels: 16 digital output points
Output voltage: 24V DC (direct current)
Output current: Maximum 0.5A per output channel (specific value may vary depending on module version)
Function:
Convert the control signals in the PLC system into digital output signals to drive various external devices.
Suitable for control applications that require multiple digital output points, such as controlling electric valves, start/stop devices, toggle switches, etc.
Application scenarios:
Industrial automation: Used in production lines and automation systems to control various external devices, such as drive solenoid valves, relays, indicator lights, etc.
Equipment control: Control the status of large equipment or machines to ensure the normal operation of the production line.
Technical parameters:
Output voltage: 24V DC
Number of output channels: 16 digital output channels
Maximum output current: Typically, each channel can reach a maximum of 0.5A
Response time: The module has fast response capability and is suitable for application scenarios that require rapid execution of control instructions
Electrical isolation: The module is designed with electrical isolation to ensure the safety of the output signal and avoid interference on the PLC system.
compatibility:
Applicable system: Siemens S5 series PLC system (such as S5-115U, S5-135U, S5-155U, etc.).
Precautions for use:
Load requirement: Ensure that the load current of external devices does not exceed the maximum output current of the module (usually 0.5A) to prevent module overload.
Cable connection: During the cable connection process, ensure correct wiring to avoid short circuits or signal interference.
Regular inspection: Regularly check the status of output modules and external devices to ensure the normal operation of the system and the accuracy of output signals.

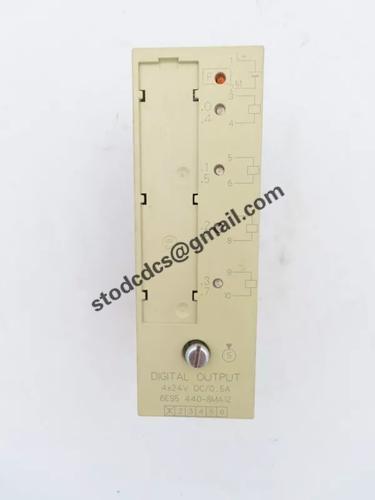

Product details picture:
