Siemens 6ES5431-4UA12 Input Module

Product manual:

Main features:
Model: 6ES5431-4UA12
Series: SIMATIC S5
Module type: Digital Input Module
Function:
Signal reception: Receive digital input signals from external sensors, switches, and other devices.
Signal conversion: Convert external switch signals into digital signals that can be processed by PLC.
Data processing: Provide the collected input signals to the PLC for further processing and control.
Application scenarios:
Industrial automation: receiving switch signals in production lines or automation systems for control and monitoring.
Process control: used to collect status information during the process, such as switch status, limit signals, etc.
Data collection: Collect signals from various sensors and switches for PLC to analyze and make control decisions.
Technical specifications:
Number of channels: Usually has multiple input channels, the specific number depends on the module design, usually 16 channels.
Input signal type: Supports digital signal input (switch signal), which can be a common voltage range such as 24V DC.
Electrical specifications: Suitable for various electrical standards in industrial environments, including input voltage range and current specifications.
Interface standard: Compliant with SIMATIC S5 series interface standards and compatible with other modules and systems.
Installation and use:
Installation: Install the 6ES5431-4UA12 input module into the SIMATIC S5 series rack and electrically connect it to other modules through the system backplane.
Configuration: Use STEP 5 programming software to configure the module, set input channel parameters and data processing logic.
Debugging: After installation, perform system debugging to ensure that input signals can be correctly collected and transmitted to the PLC.

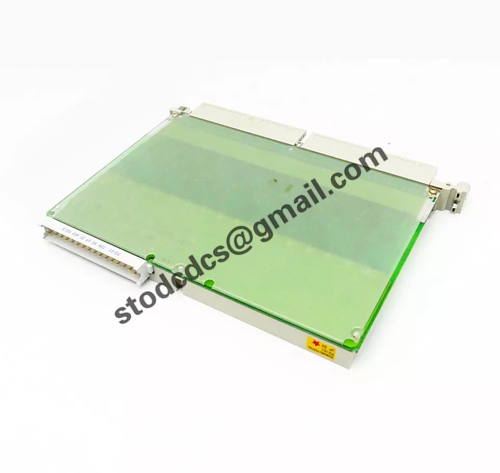

Product details picture:
