Siemens 6ES5417-7AA21 Digital Output Module

Product manual:

Product model: 6ES5417-7AA21
Series: Siemens S5
Type: Digital Output Module
Output channel: It has multiple independent output channels, with a specific quantity of 16, which can drive various devices as needed.
technical parameter
Output type:
The rated current of each output channel is usually between 0.5A and 2A (please refer to the technical manual for specific values).
Support switch voltage range: capable of processing 24V DC signals.
Connection method: Adopting a plug-in design for easy installation and maintenance.
Response time: Fast output response time, suitable for applications that require real-time control.
application area
Industrial automation: widely used in manufacturing, processing industry, mechanical control and other fields.
Process control: can be used in industries such as chemical, pharmaceutical, and food processing, responsible for controlling various equipment on the production line.
Equipment control: used to control the operation of equipment such as motor start/stop, valve opening/closing, etc.
Installation and compatibility
Installation method: The module is designed as a plug-in type, suitable for installation in S5 series racks for easy replacement and maintenance.
Compatibility: Compatible with other modules and components of Siemens S5 series, supporting flexible system integration.
advantage
High reliability: Industrial grade design ensures stable operation in harsh environments.
Flexibility: The multi output design enables it to adapt to multiple control strategies and meet different industrial needs.
Easy maintenance: The plug-in design simplifies the maintenance process and reduces downtime.
matters needing attention
Electrical connections: When installing and wiring, please ensure that all connections are correct to avoid equipment damage or functional failure.
Load requirement: Please ensure that the connected load is within the rated output range of the module to avoid damaging the module.

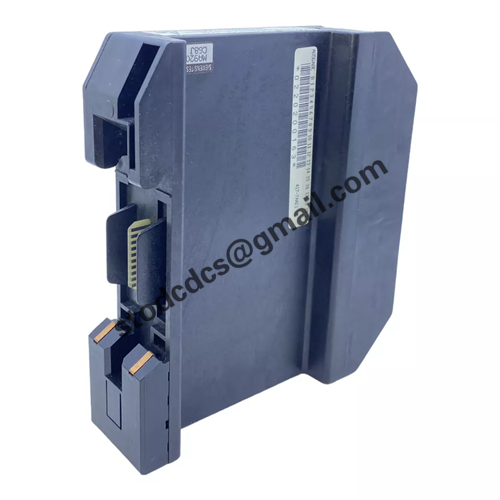

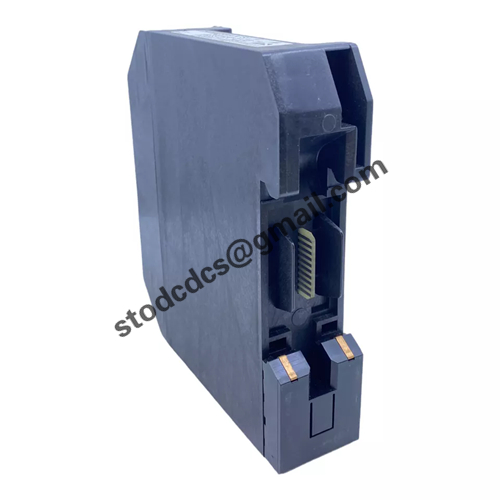

Product details picture:
