SIEMENS 6ES5306-7LA11 interface module

Product manual:

Siemens 6ES5306-7LA11 is an interface module of the Siemens S5 series. The following is the detailed information of the module:
Siemens 6ES5306-7LA11 Interface Module
main features
Module type: Interface module, used for Siemens S5 PLC system.
Interface type: Provides interfaces for communication with external devices or systems, typically including serial communication (such as RS-232, RS-485) and/or parallel interfaces.
Communication Protocol: Supports multiple industrial communication protocols for data exchange between PLC and other devices or computer systems.
Data transmission: Supports high-speed data transmission to meet communication needs in industrial automation applications.
Configuration: It is usually necessary to set parameters through configuration software (such as STEP 5) to ensure compatibility with other devices.
Application scenarios
Industrial automation: used for data communication between PLC systems and other industrial equipment or systems.
Data exchange: Implement data exchange and integration between PLC and computer, control system or monitoring system.
Remote control: supports remote control and monitoring functions, and interacts with remote devices through interfaces.
Installation and operation
Installation: Install the interface module into the rack of the Siemens S5 controller, ensuring that the module interfaces correctly with the rack.
Connection: Connect external devices or communication lines to the interface ports of the module and wire them according to standard electrical connection methods.
Configuration: Use Siemens' configuration tool (such as STEP 5 software) to set module parameters, including communication protocol, transmission rate, etc.
Testing: Conduct communication testing to ensure that the module can exchange data with other devices normally and make necessary adjustments.

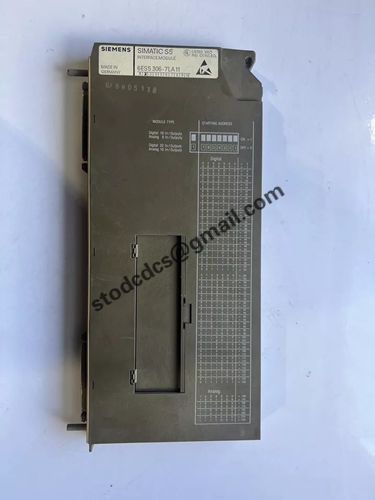

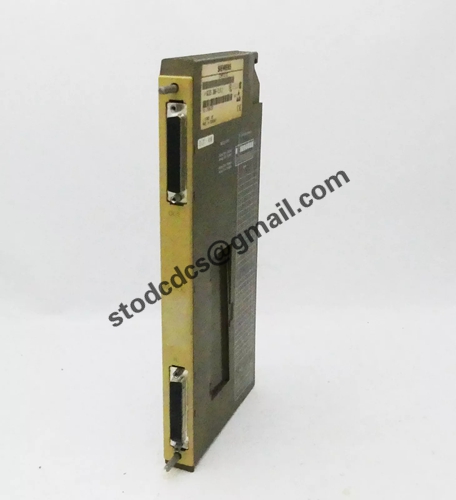

Product details picture:
