Siemens 6AV12420AB10 Communication Processor

Product manual:

main features
Product model: 6AV1242-0AB10
Series: Siemens S7
Type: Communication Processor
major function
Multi protocol support: This communication processor supports multiple industrial communication protocols, such as Profibus, Profinet, and Ethernet, making it easy to exchange data with different types of devices.
Data forwarding: capable of forwarding data between different devices, achieving linkage and information sharing among multiple devices.
Network management: Provides network monitoring and management functions to ensure the stability and reliability of communication.
technical parameter
Interface type: Usually equipped with multiple interfaces, such as RS-232, RS-485, Ethernet, etc., for easy connection with various devices.
Transmission rate: Supports multiple transmission rates, depending on the communication protocol used.
Compatibility: Compatible with Siemens S7 series controllers to ensure seamless integration.
application area
Industrial automation: widely used in manufacturing, process control, mechanical equipment and other automation systems to achieve effective communication between devices.
Data collection: used for real-time data collection and monitoring, improving the system's response speed and decision-making efficiency.
Installation and compatibility
Installation method: Designed to be easily inserted into the rack of the S7 controller for easy integration and maintenance.
Compatibility: Compatible with other Siemens S7 modules and controllers to ensure overall system performance.
advantage
High reliability: Industrial grade design, suitable for stable operation in various environments.
Flexibility: Supports multiple communication protocols and interfaces to meet different application requirements.
Easy to configure: Equipped with user-friendly configuration tools, convenient for users to set parameters and manage networks.
matters needing attention
Electrical connection: Ensure all connections are correct to avoid communication failures caused by improper wiring.
Network configuration: When setting up the network, pay attention to the configuration of IP address and subnet mask to ensure smooth communication with other devices.

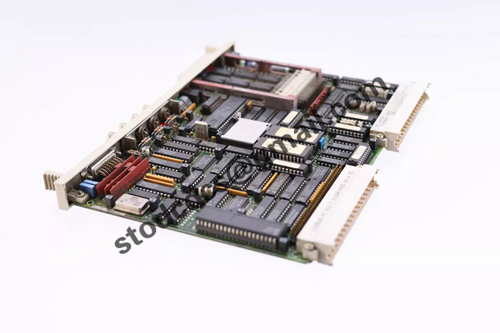

Product details picture:
