Siebel&Scholl IPS21-24V-35AD 3BHE032593R0001 Isolation Power Module

Product manual:

main features
Isolation power supply design
Provide isolated power supply to ensure electrical isolation between power input and output, avoid the impact of ground loop current and noise interference on equipment, and enhance the stability and reliability of the system.
Efficient performance
Adopting an efficient switching power supply design, the conversion efficiency is over 90%, minimizing energy loss and heat generation, maintaining low-temperature operation, and improving module lifespan.
Wide input voltage range
The input voltage range is from 85V AC to 264V AC, suitable for different grid voltage conditions and supporting the usage needs of different regions around the world.
Output voltage: 24V DC
Stable output voltage, suitable for various automation control equipment, PLC systems, sensors, and actuators.
High output current
The maximum output current is 35A, supporting high load requirements and suitable for high-power devices and systems.
Multiple protection functions
Built in overload protection (OLP), overvoltage protection (OVP), and over temperature protection (OTP) ensure the safe operation of the power module in harsh environments and abnormal situations, preventing equipment damage.
Compact design
Compact design, suitable for integrated installation of cabinets and equipment, saves space, and is easy to install and maintain.
High reliability
It has a long mean time between failures (MTBF) and has undergone rigorous industrial testing, ensuring stable operation in harsh environments and long-term reliability.
technical specifications
Model: IPS21-24V-35AD (3BHE032593R0001)
Input voltage:
AC input: 85V to 264V AC
DC input: does not support DC input, designed separately for AC power input.
Efficiency: up to 90% (typical)
Working temperature: -20 ° C to+70 ° C
Storage temperature: -40 ° C to+85 ° C
Size: 260 mm x 120 mm x 50 mm (L x W x H)
Cooling method: natural convection cooling
Protection function:
Certification: CE, UL, RoHS
Environmental humidity: 5% to 95% (without condensation)

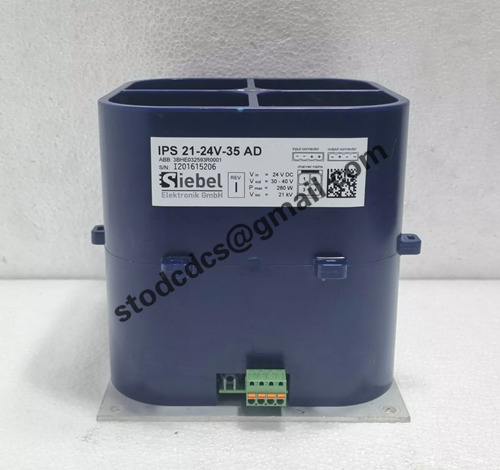

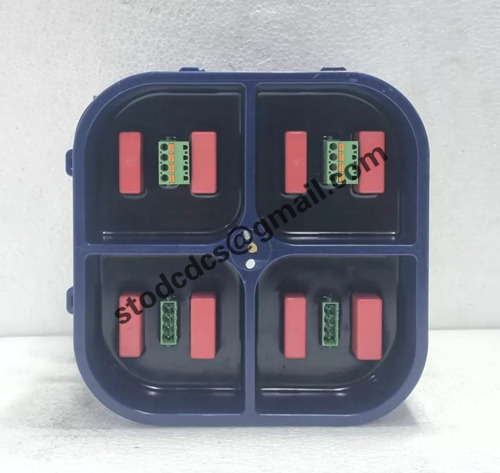

Product details picture:
