Schneider TM3AI8 Analog Input Module

Product manual:

Main features:
Input channel: The TM3AI8 module provides 8 analog input channels, which can simultaneously collect multiple analog signals.
High resolution: Provides high-resolution analog signal acquisition to ensure accurate measurement and control of input signals.
Sampling speed: The module has a fast sampling speed, suitable for application scenarios that require real-time data collection and processing.
Application areas:
Manufacturing industry: used to monitor various parameters in the production process, such as temperature,

pressure, flow rate, etc., to ensure the stability of the production line and product quality.
Oil and gas: Monitor the operating status and process parameters of equipment during the extraction, processing, and transportation of oil and gas.
Chemical industry: Monitor the reaction conditions in chemical production to ensure the safety of the reaction process and the consistency of the product.
Technical specifications (overview):
Number of input channels: 8 analog input channels.
Input type: Supports voltage (such as 0-10V) and current (such as 4-20mA) inputs.
Input Range: Depending on the input type, different input ranges are supported.
Resolution: High resolution, typically 12 bits or higher, providing accurate measurement data.
Sampling speed: Suitable for real-time data collection, the specific sampling speed depends on the configuration.
Power requirements: Modules are typically powered by the controller's power supply,

and the specific voltage range and power consumption depend on the device specifications.
Environmental adaptability: Designed for industrial environments, capable of operating within common temperature ranges and humidity conditions.
System advantages:
Accurate measurement: High resolution and fast sampling speed ensure accurate measurement of analog signals.
Flexible configuration: Supports multiple input types and configuration options to meet various application needs.
Easy to integrate: Compatible with Schneider Electric's Modicon M221 and M241 controller systems, facilitating system integration and deployment.
Reliability: The built-in diagnostic function improves the reliability of the system, enabling timely detection and handling of faults.

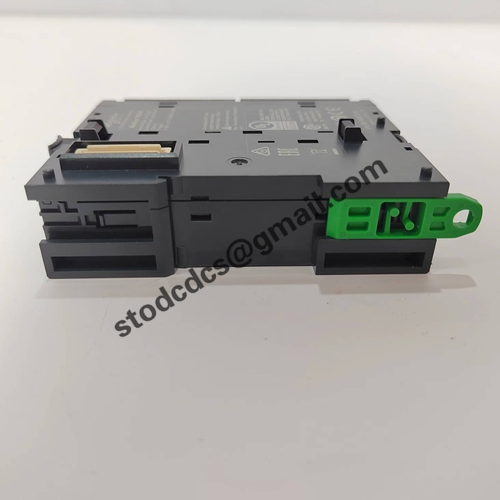

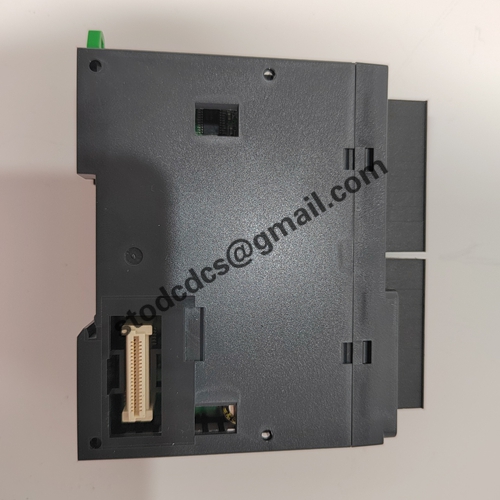

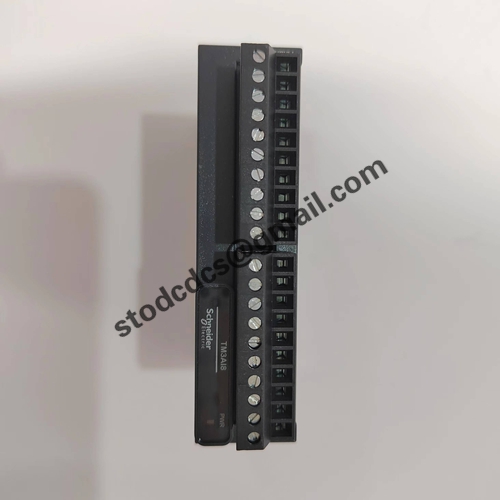

Product details picture:
