SB822 3BSE018172R1 rechargeable battery unit

Brand: ABB
Model:SB822 3BSE018172R1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

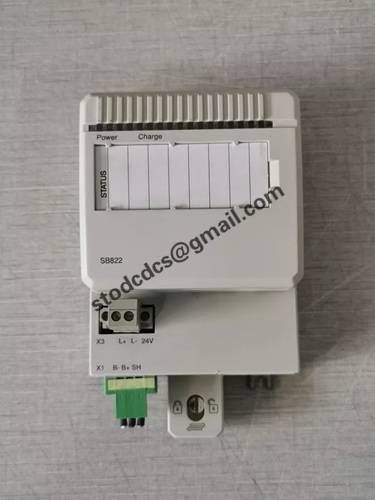

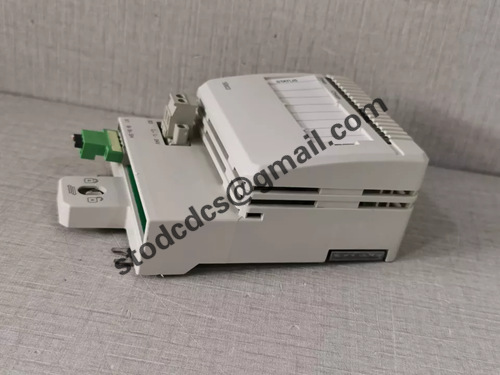

ABB SB822 3BSE018172R1 rechargeable battery unit

Product manual:

ABB model SB822 (3BSE018172R1) is a rechargeable battery unit designed to provide extended memory backup for AC 800M controllers. The battery unit adopts DIN rail installation method, including lithium-ion battery, 24V DC connector, and 2-meter connecting cable (model TK821V020).
Main features:
External power supply: In the event of a main power failure, SB822 serves as an external power supply to provide backup power for the AC 800M controller, ensuring the continuous operation of the system and preventing data loss.
DIN rail installation: Designed for DIN rail installation, it is easy to integrate and fix inside the control cabinet.
Lithium ion battery: using rechargeable lithium-ion batteries to provide reliable power support.
Technical parameters:
Rated output voltage: 3.6V
Maximum output current: 0.05A
Working temperature range: up to 60 ℃
Protection level: IP20， Compliant with IEC 60529 standard
Dimensions: Width 85.8mm, Depth 58.5mm, Height 136mm
Weight: Approximately 550 grams
The design of the SB822 battery unit aims to provide reliable backup power for the AC 800M controller, ensuring that the system can maintain data integrity and continuous operation even when external 24V DC power is unavailable.
