RELIANCE ELECTRIC S-D4043 digital control module

Product manual:

Power supply voltage and power: The input voltage of the S-D4043 is AC 120V or 230V. Before using the S-D4043, ensure that the input power meets requirements. Besides. It is also necessary to pay attention to whether the power of the input power supply meets the needs of the controller and the motor.
Wiring precautions: When wiring, it is necessary to connect according to the wiring diagram on the product manual. Pay attention to the accuracy and reliability of cable connections. Ensure that the interface is securely connected and not loose or short-circuited. In the meantime. It is also necessary to avoid dangers such as high pressure and high temperature when wiring.
Environmental conditions: S-D4043 should be used in a dry, well-ventilated and suitable temperature environment. Avoid use in humid, high temperature, easy to produce corrosive gas environment.
Control parameter setting: Before use, it is necessary to set control parameters according to the specific motor and application requirements. Incorrect control parameters can cause the motor to fail to work properly or damage the controller.
Protection function: S-D4043 has a variety of protection functions, such as overcurrent, overheat, overload and so on. These protection functions need to be monitored during use. Avoid damage to the controller

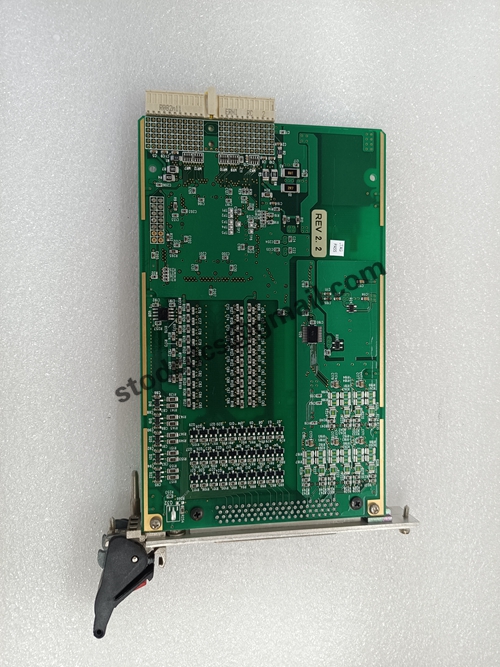

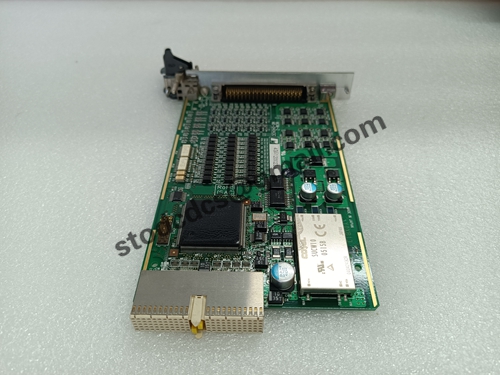

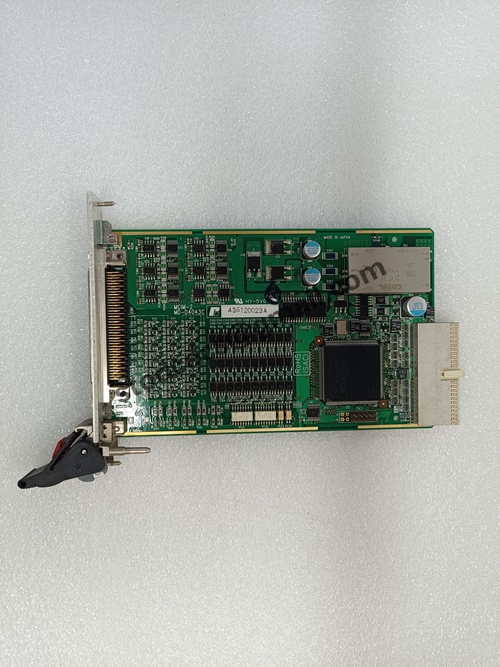

Product details picture:
