Radisys 61-0950-20 axis control card

Product manual:

Radisys 61-0950-20 is an axis control card used for precise control and management of servo motors or stepper motors in industrial systems. The following is detailed information about the axis control card:
Main functions and features
Axis control function:
Multi axis control: supports synchronous control of multiple axes, suitable for applications that require precise position and speed control.
Servo control: supports the control of servo motors, including position, speed, and torque control functions.
Stepper motor control: compatible with stepper motors, providing precise step control, suitable for applications that require precise positioning.
Input/output interface:
Digital Input/Output: Provides multiple digital input and output interfaces for connecting external switches, sensors, and actuators.
Analog Input/Output: Some models may provide analog input/output interfaces that support integration with analog signal devices.
Communication interface:
High speed interface: Provides a high-speed communication interface to ensure real-time data transmission and control response.
Motion control algorithm:
Motion planning: Built in complex motion planning algorithms that support the generation and execution of motion trajectories such as lines, arcs, and interpolation.
Dynamic compensation: Supports dynamic compensation functions, such as real-time compensation for speed, acceleration, and load changes.
Configuration and programming:
Programming tools: Provide programming tools and software that support users to customize motion control programs and parameter settings.
Graphical interface: Some models may be equipped with a graphical configuration interface to simplify the system setup and debugging process.
Performance and stability:
High precision: Provides high-precision axis control to ensure the accuracy and stability of the system.
Real time response: With real-time response capability, suitable for high dynamic and high-speed control scenarios.
Protection function:
Overload protection: Equipped with overload protection function to prevent system damage in abnormal situations.
Over temperature protection: Provides over temperature protection function to ensure safe operation of equipment in high temperature environments.

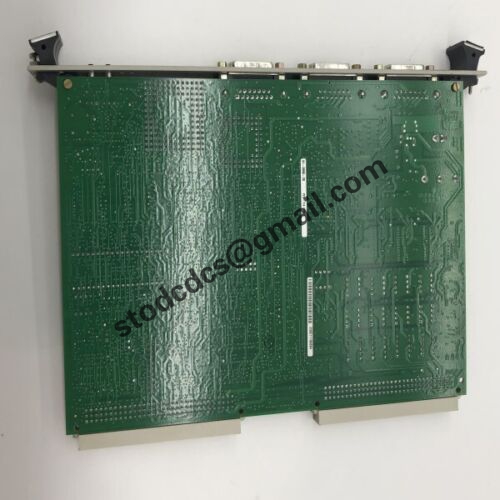

Product details picture:
