RADIOSYS 61-0237-05 Encoder Board

Product manual:

The Radisys 61-0237-05 encoder board is an encoder interface board used in industrial and embedded applications. The following is detailed information about the encoder board:
Main functions and features
Encoder interface:
Designed to connect various types of encoders (such as incremental encoders or absolute encoders), converting encoder signals into digital data for system processing.
Supports multiple encoder signal formats, such as A/B phase signals, Z-axis signals, etc.
Signal processing:
Built in signal processing function, capable of efficiently processing encoder input signals, providing high-precision motion data and position feedback.
Support signal filtering and amplification, reduce noise interference, improve signal quality and reliability.
Interface and Connection:
Provide multiple interface options, such as standard connectors and wiring terminals, for easy connection with encoders and other system components.
Compatible with various industrial standards and protocols, supporting use with different types of encoders and control systems.
Data collection and output:
Real time data collection is achieved, which can accurately measure and record the position information and motion status of the encoder.
Supports multi-channel input, capable of processing multiple encoder signals simultaneously, suitable for multi axis systems.
compatibility:
Designed to be compatible with other modules and systems of Radisys, capable of integrating into existing industrial and embedded computing platforms.
Supports compatibility with multiple controllers and processor boards, providing flexible system configuration options.
Stability and reliability:
Designed for industrial environments, it has high reliability and durability, and can operate stably under harsh working conditions.
Equipped with protective functions such as overcurrent protection and short circuit protection, ensuring the safety of the system.
Management and monitoring:
Provide status monitoring and fault diagnosis functions, which can monitor the status of encoder signals in real time and provide fault alarm and diagnostic information.
Support remote management and configuration, facilitating system maintenance and debugging.

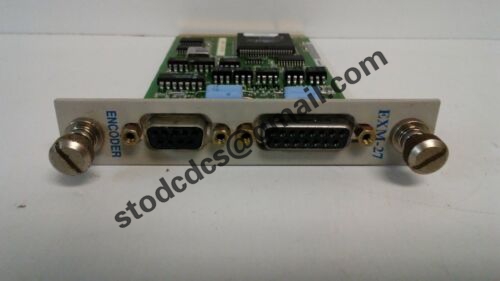

Product details picture:
