PWB68A999701DA1 filter plate

Product manual:

PWB68A999701DA1 filter board should be a signal or power filtering module used in electronic or electrical systems.
Such filter plates are typically used to protect equipment from electromagnetic interference (EMI)
The impact of radio frequency interference (RFI) or other unstable signals ensures the reliability of system operation.
Function and Features
Signal filtering:
Filter out high-frequency noise or interference signals to ensure signal quality.
Power noise suppression:
Smooth out fluctuations in DC or AC power sources to provide stable current.
Protection equipment:
Avoid damage to sensitive components (such as processors, sensors, etc.) caused by electrical interference.
Modular design:
In the form of independent modules, it can be easily integrated into various control systems or devices.
Industrial grade performance:
Made of durable materials, suitable for harsh environments such as high temperature, high humidity, or high vibration situations.
Possible technical specifications
Input voltage range: Supports DC or AC voltages of 24V, 48V, or higher.
Filter frequency range: may target 50Hz-60Hz power supply noise, or EMI/RFI in higher frequency bands.
Port interface:
Commonly used are screw terminals, solder joints, or plug-in connectors.
Physical size: The size may be small, making it convenient to integrate into cabinets or devices.
Work environment:
Temperature range:- 40 ° C to+85 ° C.
Humidity range: 5% -95% (without condensation).
Application scenarios
Industrial automation:
Used to protect PLC, HMI or other control modules from interference.
Communication system:
Improve the stability of signal transmission and reduce data packet loss rate.
Energy sector:
Noise suppression and stability enhancement in power equipment.
Home appliances or industrial equipment:
Ensure the reliable operation of equipment such as frequency converters and motor drivers.
Medical equipment:
Ensure the precise operation of sensitive electronic devices and avoid external interference.

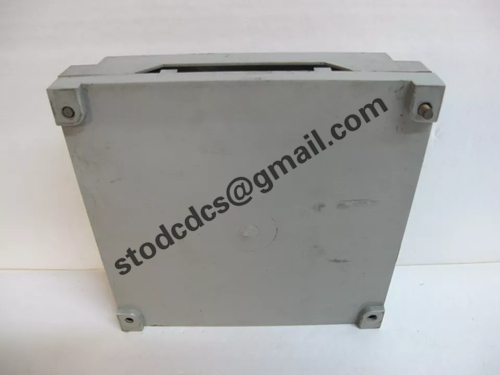

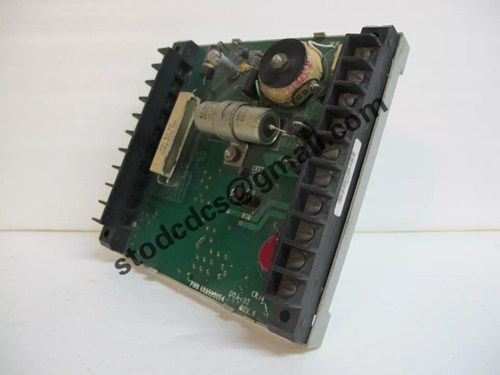

Product details picture:
