ProSoft MVI56-MBP Communication Module

Product manual:

Easily implement data reading and writing using the ControlLogix program.
High performance communication
Supports up to 500 data messages per second, suitable for high demand applications.
Provide fast response time to ensure real-time performance.
Flexible configuration
Use the ProSoft Configuration Builder (PCB) tool for configuration.
Support customizing Modbus Plus network addresses and communication parameters.
Diagnostic function
Provide module status and communication error indicator lights for easy troubleshooting.
Support running status monitoring through software.
technical specifications
Network protocol: Modbus Plus
Interface type: DB9 connector (supports RS-232 serial port configuration)
Backplane communication speed: 5 Mbps
Number of supported devices: up to 32 Modbus Plus nodes
Power requirement: 800 mA @ 5 VDC (powered from ControlLogix rack)
Working temperature: 0 ° C to+60 ° C
Size: Standard ControlLogix I/O module size
Configuration tool: ProSoft Configuration Builder (supported by Windows)
application area
process control
Integrate Modbus Plus devices and systems in industries such as refining, chemical, and food processing.
industrial automation
Realize fast data exchange with devices such as frequency converters, PLCs, HMIs, etc.
energy management
Monitor and control equipment in energy distribution systems.
distributed control system
Integrate Modbus Plus network into large-scale distributed systems.
Installation and Configuration
hardware install
Insert the module into any empty slot in the ControlLogix rack.
Connect the module to the Modbus Plus network using the DB9 interface.
software configuration
Open the ProSoft Configuration Builder tool and create a new project.
Set Modbus Plus network address and related parameters.
Download the configuration file into the module.
ControlLogix Program Integration
Create message instructions (MSG) in the ControlLogix program to enable data communication with Modbus Plus devices.
advantage
Provide stable and reliable Modbus Plus communication.
Easy to configure and maintain.
Strong compatibility and can be used in various industrial scenarios.
Efficient data transmission capability, supporting complex applications.

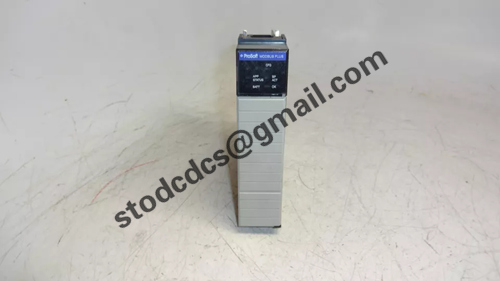

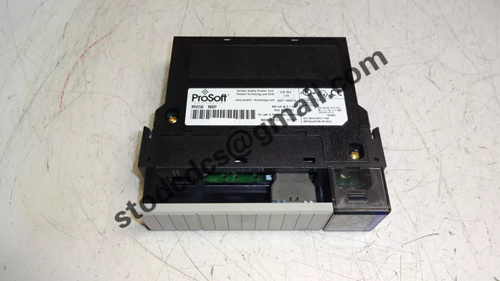

Product details picture:
