ProSoft 5205-DFNT-PDPS Ethernet Gateway

Product manual:

ProSoft 5205-DFNT-PDPS Ethernet Gateway is an industrial communication module used for protocol conversion and data exchange between Ethernet/IP networks and PROFIBUS DP slave devices.
This module is designed specifically for complex industrial automation systems and is suitable for integrated communication in multi protocol environments.
Product Overview
Model: 5205-DFNT-PDPS
Brand: ProSoft Technology
Function: As a gateway between Ethernet/IP protocol and PROFIBUS DP slave stations, it supports efficient and reliable data communication.
Key technical parameters
Parameter description
The Ethernet port supports 10/100 Mbps full duplex/half duplex Ethernet
The Ethernet protocol supports DF1 protocol, Ethernet/IP, and Modbus TCP
PROFIBUS communication supports PROFIBUS DP-V0 slave function
PROFIBUS speed range from 9.6 kbps to 12 Mbps
Supports up to 125 PROFIBUS slave devices
The data exchange capacity supports up to 244 bytes of input and 244 bytes of output
Configuration method through ProSoft Configuration Builder tool
Power requirement 24 V DC, maximum 3.5 W
Working temperature: 0 ° C to+60 ° C
Dimensions 13.97 x 10.16 x 4.32 cm
Protection level IP20

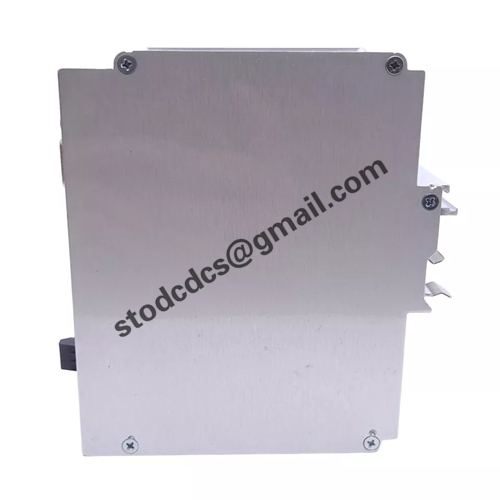

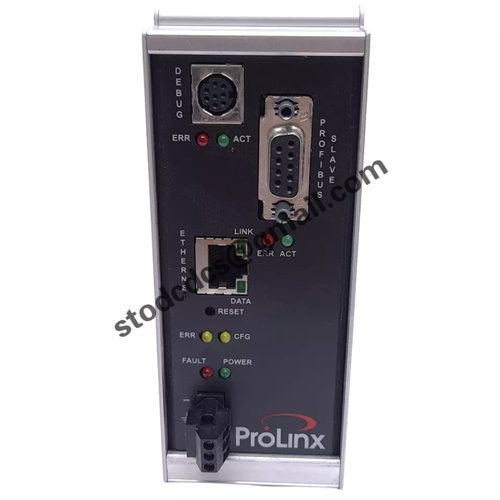

Product details picture:
