PM865K01 3BSE031151R1 processor

Product manual:

The ABB PM865K01 3BSE031151R1 processor is a high-performance controller from the ABB AC 800M series, designed specifically for industrial automation and process control. This module supports a wide range of input/output devices and network protocols, with powerful computing capabilities and reliable redundancy functions, and is widely used in fields such as power, chemical, oil and gas, and manufacturing.
main features
High performance control
Equipped with dual core RISC processors, capable of efficiently executing complex control logic.
Supports real-time control and high-speed data processing, suitable for harsh industrial applications.
Redundant functions
Support CPU redundancy, with a switching time of less than 10 milliseconds.
Provide high reliability, ensure continuous operation of the system, and be suitable for critical task applications.
Rich communication capabilities
Built in multiple communication interfaces:
Ethernet (Ethernet)
Serial communication (RS-232/RS-485)
Supports multiple protocols, including Modbus TCP/IP, PROFINET, and OPC.
Modular design
Compatible with AC 800M series I/O modules and expansion modules.
Easy to install and maintain, flexible to expand system functionality.
Wide compatibility
Support seamless integration with ABB 800xA system.
Can be used for discrete, continuous, or batch process control.
durable
Industrial grade design, resistant to electromagnetic interference and vibration.
Wide working temperature range, suitable for harsh industrial environments.
technical parameter
processor
Dual core 32-bit RISC processor.
Clock frequency: 266 MHz.
Memory
RAM：64 MB。
Flash memory: 32 MB.
communication interface
Ethernet: 2 10/100 Mbps ports.
Serial port: RS-232 or RS-485.
Scalable fieldbus interface.
Power requirements
Voltage input: 24V DC.
Power consumption: 8 watts (typical value).
environment condition
Working temperature: -25 ° C to+70 ° C.
Storage temperature: -40 ° C to+85 ° C.
Humidity: 5% to 95% (without condensation).
Installation and Dimensions
Supports DIN rail installation.
Size: 123 x 186 x 90 millimeters.

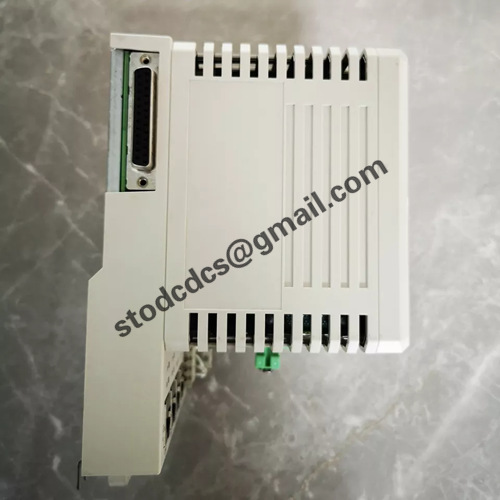

Product details picture:
