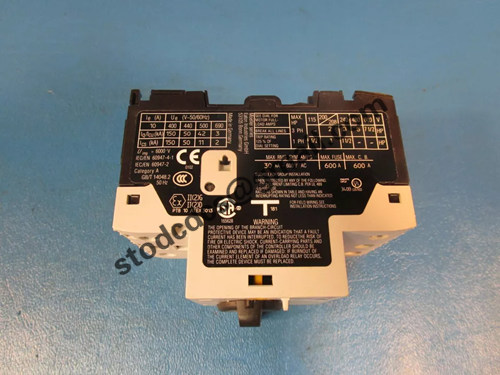

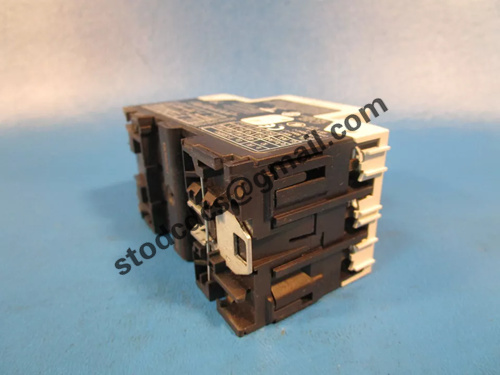

PKZM0-10-T Circuit Breaker

Brand:ABB
Model:PKZM0-10-T
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

PKZM0-10-T Circuit Breaker

Product manual:

PKZM0-10-T is a 10A thermal magnetic circuit breaker produced by Weidm ü ller, belonging to the PKZ series, designed specifically for industrial automation control circuits, providing overload and short-circuit protection.

2. Key parameters
Parameter specifications
Rated current 10A
Rated voltage 690V AC/250V DC
Breaking capacity 100kA (compliant with IEC 60947-2)
Release characteristics: thermal magnetic type (overload+short circuit dual protection)
Polar number 1P
Mechanical lifespan ≥ 20000 cycles
Wiring method: Screw terminal (maximum 25mm ²)
Protection level IP20
3. Main features
Compact design (only 45mm wide)

Visual release indicator (red mechanical indicator)

Can be equipped with auxiliary contacts (PKZM0-AUX option)

Compliant with IEC/EN 60947-2 standard

4. Typical applications
Motor protection (≤ 7.5kW)

Secondary side protection of transformer

Main circuit of industrial control cabinet

Distribution box incoming line protection

5. Installation Guide
Installation method: 35mm DIN rail installation

Torque requirement:

Main circuit: 2.5N · m

Auxiliary contact: 1.2N · m

Distance requirement:
