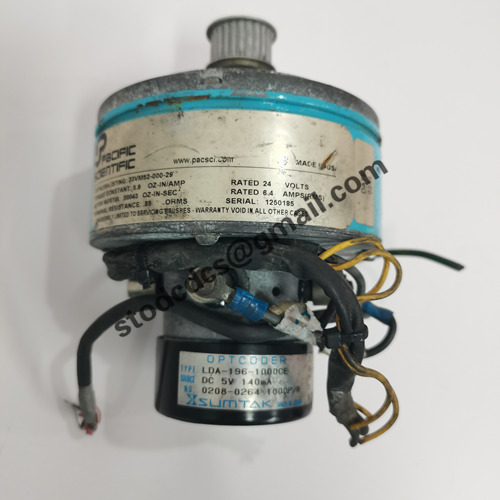

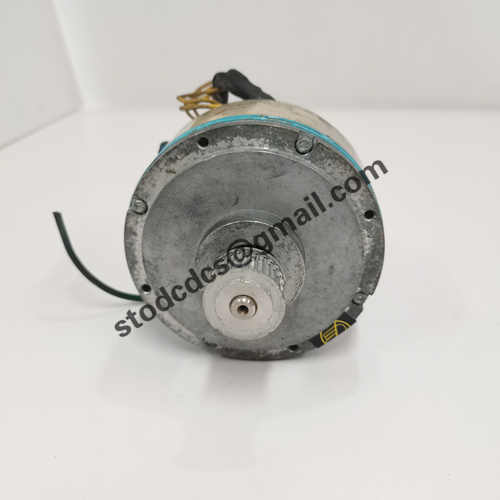

PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE Rotary Encoder

Brand:PACIFIC SCIENTIFIC
Model:33VM52-000-29 LDA-196-1000CE
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE Rotary Encoder

Product manual:

PACIFIC SCIENTIFIC 33VM52-000-29 LDA-196-1000CE rotary encoder is a high-precision incremental encoder mainly used in servo motors, industrial automation, CNC machine tools, robots, and other applications that require precise position control.
🔹 main features
✅ high resolution
Adopting an incremental coding design, providing 1000 PPR (pulses per revolution), suitable for high-precision motion control.
Having precise position and velocity feedback functions helps optimize the performance of motion control systems.
✅ sturdy and durable
Industrial grade design, capable of operating in harsh environments, suitable for high vibration, high temperature, and high humidity situations.
Adopting a sealed structure, it has good dust and oil resistance capabilities.
✅ Strong compatibility
Suitable for Pacific Scientific servo motors and other brands of motion control systems.
Supports standard TTL/RS422 or HTL electrical output signals, making it easy to integrate with PLCs, servo drives, or motion controllers.
✅ Reliable signal output
Equipped with A, B, and Z signal outputs (optional), supporting direction recognition and zeroing signals.
Adopting differential signal transmission, with strong anti-interference ability, ensuring stable operation.
✅ Multiple installation methods
🔹 Technical specifications (partial)
Parameter Description
Model 33VM52-000-29 LDA-196-1000CE
Incremental encoding method
Resolution 1000 PPR (number of pulses per revolution)
Signal output A, B, Z-phase (optional), TTL/RS422 or HTL
Supply voltage 5V DC or 12-24V DC (specific model to be confirmed)
Shaft diameter standard size (specific specifications to be referred to)
Connection method: Terminal wiring or M12 connector
Protection level IP65 (depending on specific model)
Suitable for industrial environments, resistant to vibration and temperature differences
