NI PXLE-5672 Relay Module

Brand: NI
Model:PXLE-5672
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

NI PXLE-5672 Relay Module

Product manual:

NI PXIe-5672 is a high-performance radio frequency (RF) vector signal generator designed specifically for RF and microwave testing applications, providing integrated signal generation and analysis capabilities.
Main features:
Frequency range: Supports a frequency range of 250 kHz to 2.7 GHz, covering a wide range of RF applications.
Instant bandwidth: Provides up to 20 MHz of instant bandwidth, suitable for capturing and analyzing high-speed signals.
High resolution: Built in 14 bit resolution digital to analog converter (DAC) ensures accurate signal generation.
Modular design: As a PXI Express (PXIe) module, it is easy to integrate with other testing equipment and build flexible testing systems.
Application areas:
Wireless communication: used to test and verify the performance of wireless communication devices, such as 5G, Wi Fi, etc.
RF measurement: Perform adjacent channel leakage ratio (ACLR) measurement, harmonic and spurious measurement, etc.
Signal analysis: Analyze complex RF signals for modulation analysis and demodulation.
System integration: As part of the testing system, it works in conjunction with other instruments to provide comprehensive testing solutions.
Technical specifications:
Input/output connection: equipped with SMA female connector, supporting IF input, clock input and output.
Power requirements: At+3.3 VDC voltage, the RF signal down converter requires 640 mA, the IF digital module requires 1.75 A, and the RF analog signal generator requires 1.00 A.
Working temperature range: 0 ° C to 55 ° C.
Storage temperature range:- 40 ° C to 71 ° C.
In summary, the NI PXIe-5672 vector signal generator meets the diverse needs of modern RF testing and measurement with its outstanding performance and flexible configuration.

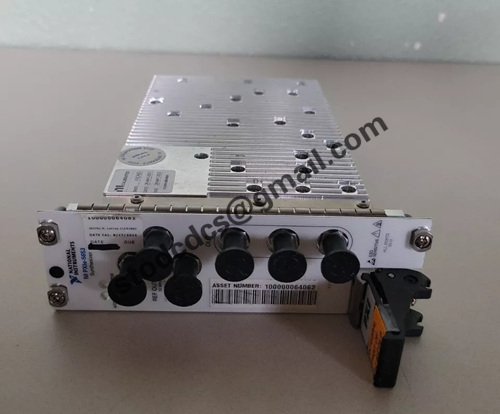

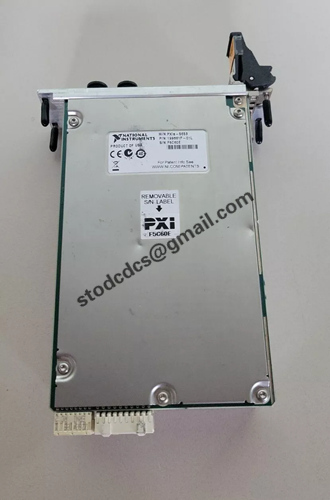

Product details picture:
