NI PXIE-5663E Multifunctional I/O Module

Product manual:

NI PXIe-5663E is a high-performance multifunctional I/O module designed specifically for the generation and analysis of radio frequency (RF) signals,
Suitable for various high-frequency applications. Here are some of its main features and application areas:
Main features:
Frequency range: Supports a frequency range of 10 MHz to 6.6 GHz, capable of covering a wide range of RF applications.
Instant bandwidth: Provides up to 50 MHz of instant bandwidth, capable of capturing and analyzing high-speed signals.
High resolution: Using a 16 bit resolution intermediate frequency (IF) digital module to achieve accurate signal measurement.
Modular design: PXIe-5663E combines RF signal down converter
The digital module and RF analog signal generator can be flexibly configured to meet various needs.
Application areas:
Wireless communication testing: widely used to test and verify the performance of wireless communication systems,
Including 5G, Wi Fi, and other modern communication technologies.
RF measurement: used for measuring RF signals, such as adjacent channel leakage ratio (ACLR), harmonic analysis, and spurious measurement.
Signal analysis: can be used for the analysis of complex RF signals, including modulation and demodulation, signal quality analysis, etc.
System integration: As a key module in the comprehensive testing system, it can collaborate with other devices to provide comprehensive testing solutions.
Technical specifications:
Input/output connection: equipped with SMA female connector, supporting intermediate frequency (IF) input
Clock input and output signal connection.
Working temperature range: 0 ° C to 55 ° C, suitable for common industrial environments.
Storage temperature range:- 40 ° C to 71 ° C ensures reliability under various harsh conditions.
In summary, NI PXIe-5663E is a powerful multifunctional I/O module,
Widely applicable in multiple fields such as wireless communication, RF testing, signal analysis, etc., it provides efficient and accurate solutions for modern RF applications.

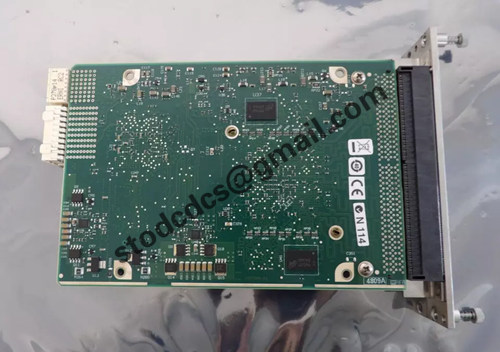

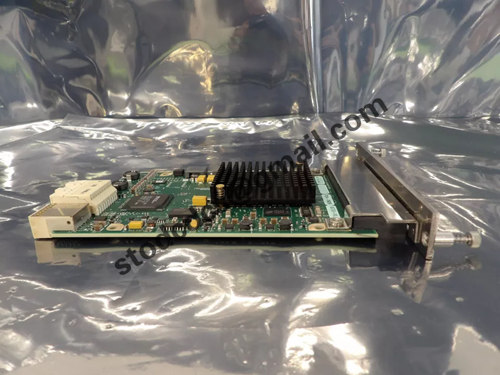

Product details picture:
