NI PXIE-5163 Oscilloscope Module

Product manual:

NI PXIE-5163 is a high-performance oscilloscope module provided by National Instruments,
Specially designed for the PXI (PCI eXtensions for Instrumentation) platform, primarily used in the fields of testing and measurement.
Main features:
High sampling rate and resolution:
Provides a bandwidth of up to 1 GHz and a sampling rate of 5 GSa/s, suitable for measuring and analyzing high-speed signals.
With a 12 bit resolution, it can more accurately capture small signal changes.
Flexible input channels:
Equipped with multiple input channels, supporting dual channel or more configurations, making it easy to simultaneously collect multiple signals.
High precision triggering function:
Provide multiple triggering options to accurately capture the signal events of interest and adapt to different testing needs.
Scalable PXI platform:
Compatible with PXI devices, supports integration with other testing and measurement modules, and has good scalability and flexibility.
Support software platforms such as NI LabVIEW and NI TestStand,
Provide rich software support suitable for automated testing and system integration.
Deep storage:
Equipped with large capacity storage, it can capture signals for a long time and is suitable for high-precision waveform capture and analysis.
Real time waveform analysis:
Support real-time waveform display and analysis, provide various waveform display modes,
Such as FFT analysis, cycle analysis, trigger waveform, etc., facilitate signal analysis for users.
Control and operation:
Graphic operation interface: Through LabVIEW or other control software,
Users can implement graphical programming to facilitate signal acquisition, processing, and analysis.
Remote control function: Users can perform remote operations and automated testing through communication interfaces such as Ethernet or GPIB.
Scientific research: widely used in physics, engineering, and other scientific research fields for precise dynamic signal measurement and analysis.

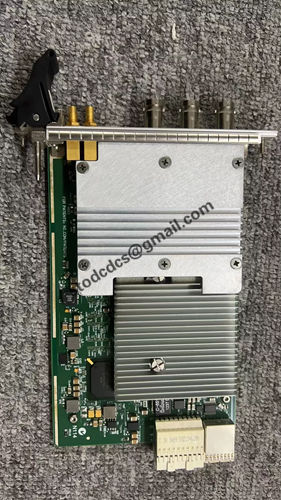

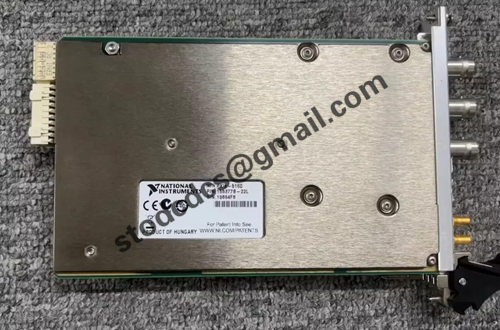

Product details picture:
