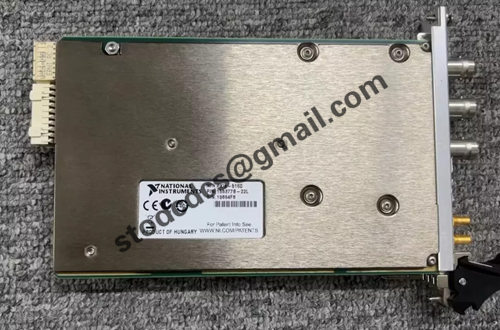

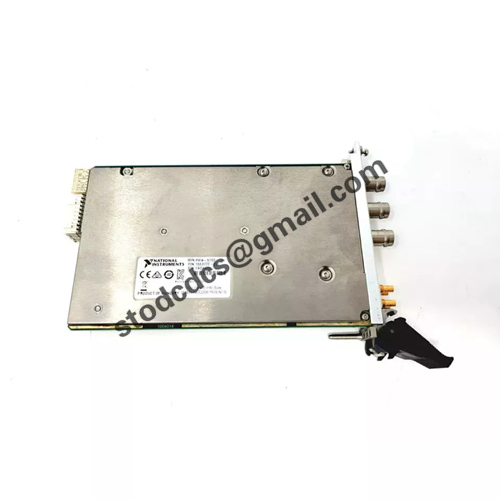

NI PXIE-5160 oscilloscope module

Brand: NI
Model:PXIE-5160
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

NI PXIE-5160 oscilloscope module

Product manual:

NI PXIe-5160 is a high-performance PXI Express oscilloscope module launched by National Instruments, widely used in fields that require high-speed signal acquisition and analysis.
Main technical specifications:
Number of channels: Two channel and four channel models are available, and all channels can be sampled simultaneously.
Analog bandwidth: up to 500 MHz.
Sampling rate: up to 2.5 GS/s.
Vertical resolution: 10 bits.
Input type: Reference single ended input using BNC connector.
Coupling method: Supports alternating current (AC) or direct current (DC) coupling.
Input impedance: The software can select 50 Ω or 1 M Ω, with typical values of 50 Ω± 1.50% and 1 M Ω± 0.75%, respectively.
Input capacitance: The typical value is 15 pF ± 0.8 pF.
Onboard memory: optional 64 MB or 2 GB.
Application areas:
Manufacturing and Quality Control: Monitor product performance on the production line to ensure that the product meets quality standards during the manufacturing process.
Communication industry: Analyze and test signal integrity in communication equipment, including wireless signals and high-speed data transmission.
Automotive Electronics: Testing and validating electronic control units, sensors, and communication systems in automobiles.
The high bandwidth and sampling rate of the PXIe-5160 oscilloscope module make it highly suitable for applications that require precise signal measurement and analysis.
