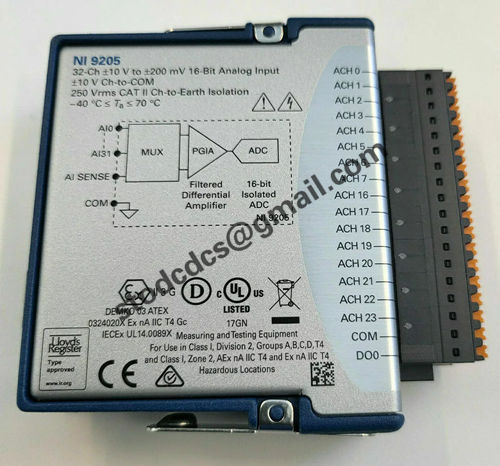

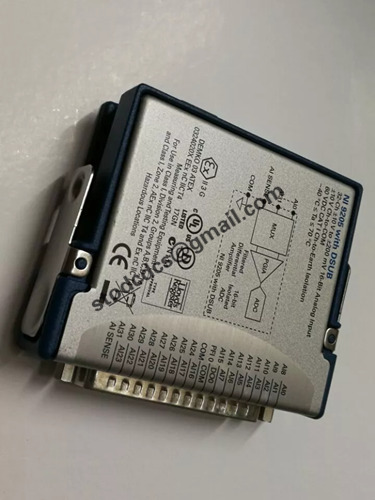

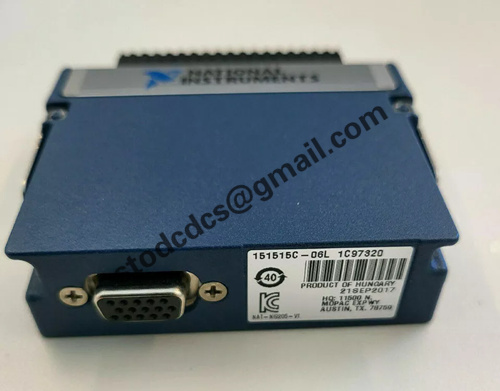

NI NI-9205 Analog Input Module
Brand: NI
Model:NI-9205
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
NI NI-9205 Analog Input Module
Product manual:
NI NI-9205 Analog Input Module
model: NI-9205
Type: Analog Input Module
Applicable: National Instruments CompactDAQ System
1. Main functions
Analog signal input: This module is used to receive analog signals from sensors or other devices and convert them into digital signals for system processing.
Multi channel support: Provides 16 independent analog input channels that can simultaneously collect multiple signals.
High precision: Provides 16 bit resolution input to ensure high-precision data acquisition.
2. Application Fields
Industrial automation: used for data acquisition, monitoring, and adjusting equipment parameters in automation control systems.
Sensor interface: Connect multiple sensors, such as temperature sensors, pressure sensors, etc., to collect relevant signals.
Testing and Measurement: Collecting accurate analog signals for analysis in laboratory and engineering testing.
3. Performance characteristics
High sampling rate: Supports sampling rates up to 250 kS/s to ensure fast data collection.
Wide input range: The input voltage range is usually -10V to+10V, suitable for various signal sources.
Anti interference: Powerful anti-interference design ensures reliable operation in harsh environments.
Programmable gain: Supports adjustable gain, making it easy to adapt to input requirements of different signal strengths.
4. Installation and maintenance
Installation: Insert into the CompactDAQ system and connect through plug and play to simplify the installation process.
Maintenance: Supports software monitoring and fault diagnosis, and users can check module status in real-time through the NI software platform.
