Multilin C30J03HCF6HH6H Relay Controller

Product manual:

The MULTILIN C30J03HCF6HH6H relay controller is a relay control and protection device in the MULTILIN series of GE (now GE Smart Grid). It is used for automation control and protection of power systems, providing efficient fault detection, system control, and monitoring functions.
Main features and functions
Relay control
Automated control: Supports automated relay control, including switch operation, protection action, and fault isolation.
Manual control: Provides manual operation options, allowing operators to directly control relays.
Protection function
Multiple protection functions: including overcurrent, ground fault, overvoltage, undervoltage and other protection functions, to meet the needs of different power systems.
Differential protection: Provides differential protection for equipment such as transformers to detect and isolate internal faults.
Monitoring and Diagnosis
Real time monitoring: Monitor parameters such as current, voltage, and power in the power system, providing real-time data for system analysis.
Fault record: Record fault and event data to support subsequent fault analysis and system maintenance.
Status monitoring: Monitor the operating status of equipment, including temperature, oil level, etc., to ensure the normal operation of the equipment.
Communication and Integration
Supports multiple protocols: compatible with communication protocols such as Modbus, DNP3, IEC 61850, etc., facilitating integration with other systems and devices.
Network interface: Provides network interface, supports remote monitoring and control, and improves operational flexibility.
user interface
Graphic display: Equipped with an intuitive graphical user interface for easy configuration and management of relay controllers.
Remote management: supports remote access and control, allowing operators to manage the system from different locations.
Reliability and durability
Durable design: Designed to adapt to various industrial environments, with high durability and stability.
Self diagnostic function: Capable of self diagnosis, able to detect and report problems in the system.

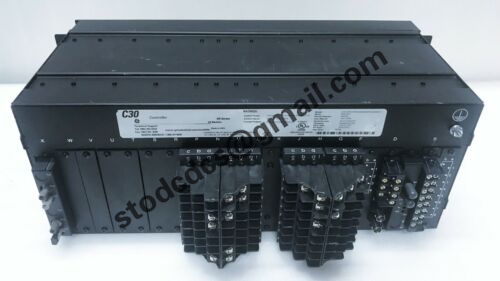

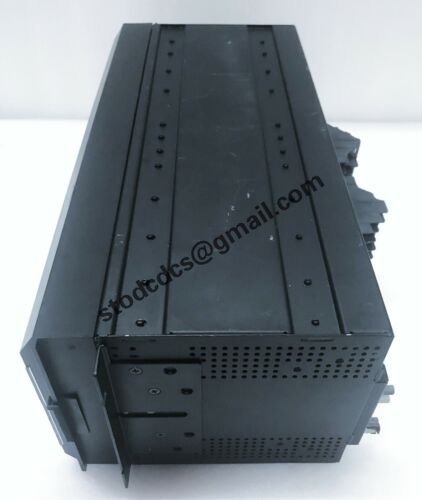

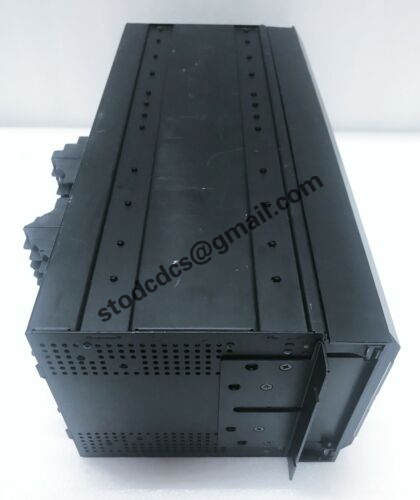

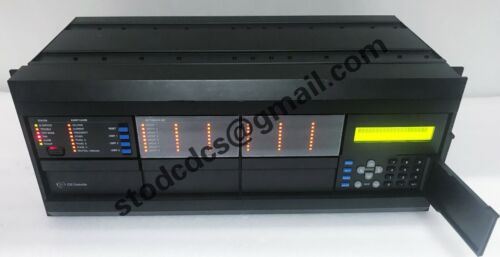

Product details picture:
