Multilin B30 bus differential relay
Product manual:
The Multilin B30 bus differential relay is a low impedance bus differential protection device mainly used for bus protection in substations,
Suitable for low voltage (LV), medium voltage (MV), high voltage (HV), and ultra-high voltage (EHV) systems.
It can support up to 16 feeders and 6 three-phase differential zones, providing centralized or distributed busbar protection solutions.
Main functions and features
High speed differential protection: using high-speed algorithms, the tripping time can reach 0.75 cycles,
And it has CT saturation detection function to improve the reliability of busbar protection.
Multi communication protocol support: compatible with IEC 61850 Ed.1 and Ed.2,
Support station control and process bus communication to improve interoperability.
Advanced Network Security: Integrated CyberSentry ™ Security features,
Can meet the network security requirements of industrial control systems.
Flexible I/O configuration: Supports high-density I/O and programmable logic to meet different application requirements.
Real time monitoring and visualization: Equipped with a full-color LCD display screen, it can view real-time information such as bus status, alarms, phasor diagrams, etc.
application area
Substation busbar protection: Suitable for differential protection of busbars in power plants and transmission and distribution substations,
Ensure the stability and safety of the power supply system.
Industrial power grid: widely used in large-scale power grids such as steel, petrochemical, mining, and manufacturing industries to ensure the safe operation of power equipment.
Distribution network: supports centralized or distributed busbar protection architecture,
Can be applied to urban power supply, smart grid and other systems.
Renewable energy: used for grid protection of new energy sources such as wind power and photovoltaic power plants, to prevent busbar failures from affecting the entire power system.
As an efficient busbar protection solution, Multilin B30 can provide reliable protection
Visual monitoring and advanced network security features are suitable for various application scenarios in modern power systems.

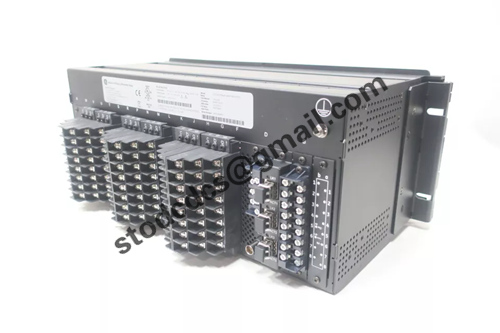

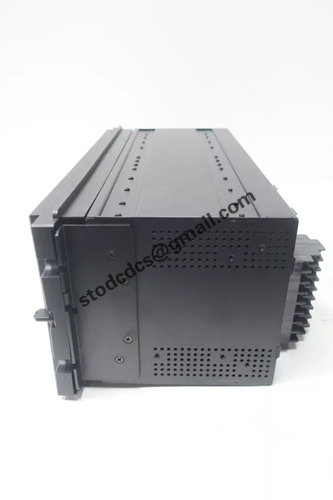

Product details picture:
