MULTILIN 345-E-P5-G5-H Transformer Protection System

Product manual:

Main features and functions
Comprehensive transformer protection
Overcurrent protection: Provides protection against high currents to prevent transformer damage caused by overload or short circuit.
Differential protection: It achieves protection against internal faults in transformers by comparing input and output currents to detect and isolate internal faults in transformers.
Grounding protection: Monitor the grounding faults of transformers, provide timely fault response and protection.
Advanced Monitoring and Diagnosis
Temperature monitoring: The built-in temperature sensor monitors the temperature of the transformer to prevent overheating and damage to the equipment.
Oil level and gas monitoring: Monitor the oil level and internal gas of the transformer, providing real-time feedback on the status of the transformer.
Insulation monitoring: detecting the insulation condition of transformers and warning of possible insulation failures.
Communication and integration
Supports multiple communication protocols such as Modbus, DNP3, IEC 61850, etc., facilitating integration with other devices and systems.
Network interface: Provides a network interface that supports data transmission and remote access, facilitating monitoring and management.
intelligent control
Automatic reclosing: Automatically attempts to restore power supply in the event of a temporary fault.
Alarm and notification: The system can set alarm thresholds and send notifications when faults occur, ensuring that operators can respond quickly.
User friendly interface
Graphic display: Provides an intuitive graphical user interface for configuring and monitoring transformer status.
Remote management: supports remote access and operation, allowing system management and maintenance from a remote location.
Reliability and durability
Durable design: The equipment is designed to have high durability, adapt to various environmental conditions, and ensure long-term stable operation.
Fault record: Record historical fault and event data for easy fault analysis and maintenance.

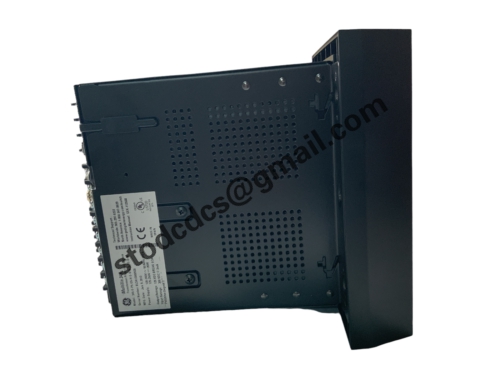

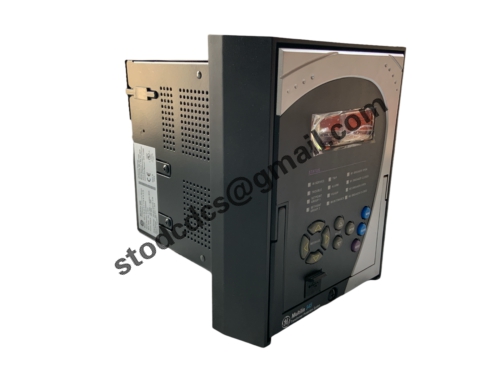

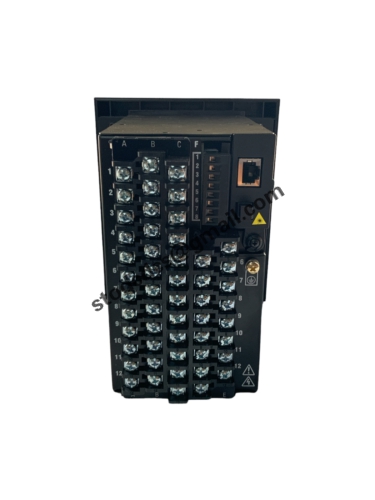

Product details picture:
