MOXA EDS-518A-MM-SC Network Management Switch

Product manual:

Main features:
High end performance:
Port configuration: This switch has 16 10/100/1000 Mbps Ethernet ports and 2 100/1000 Mbps fiber ports, supporting high-speed data transmission and high bandwidth requirements.
Packet forwarding capability: Supports up to 10.1 Gbps switching capacity, providing fast packet forwarding and low latency network performance.
Industrial grade design:
Environmental adaptability: With a wide temperature design, it can operate stably within the temperature range of -40 ° C to 75 ° C, suitable for harsh industrial environments.
Protection level: Compliant with IP30 standard, dustproof and waterproof design ensures long-term reliability of internal components.
Network management and security:
QoS (Quality of Service): Provides traffic priority settings to ensure that critical application traffic is given priority processing and optimize network performance.
SNMP management: Supports the Simple Network Management Protocol (SNMP), making it convenient for network administrators to monitor and manage devices.
Redundant power supply: equipped with dual power inputs to ensure that the equipment can continue to operate normally in the event of a main power failure.
Fiber optic connection:
Fiber ports: Provides 2 100/1000 Mbps fiber ports, supporting long-distance data transmission and network topology expansion.
SC interface: using SC fiber interface, suitable for single-mode and multi-mode fibers, providing flexible fiber connection options.
Easy to install and maintain:
DIN rail installation: Supports DIN rail installation, suitable for the installation of industrial control cabinets and racks.
Web interface management: Provides intuitive web interface management tools to simplify device configuration and troubleshooting processes.
Technical specifications:
Port configuration:
16 10/100/1000 Mbps Ethernet ports
2 100/1000 Mbps fiber optic ports (SC interface)
Switching capacity: 10.1 Gbps
Forwarding rate: 7.5 Mpps
Working temperature range: -40 ° C to 75 ° C
Power input:
Dual power input, supporting 12/24/48V DC redundant power supply
Protection level: IP30
Certification: Compliant with CE, FCC, and UL certification standards

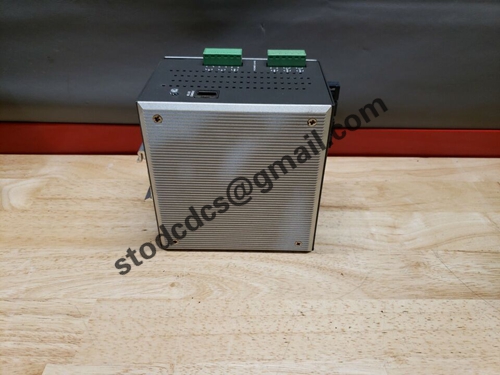

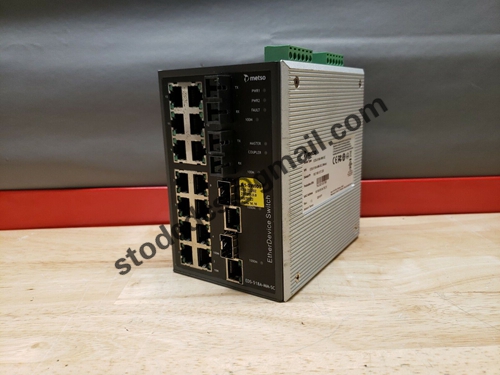

Product details picture:
