Marine Mas PD-5010-LCD Interface Module

Product manual:

Main functions and features
LCD display interface
Equipped with a high brightness LCD display screen, providing real-time operational data and status information.
Support multi line display, clear and easy to read, can display alarms and device parameters.
Interface support
Supports multiple communication protocols for connecting ship control systems and external devices.
Provide standardized data interfaces such as RS-232, RS-485, CAN bus, or Ethernet.
Multi functional integration
Used to monitor multiple input signals and process data in real-time.
Provide multi-channel input and output for connecting sensors, actuators, and control devices.
User friendly design
Equipped with buttons or touch screen design, it is convenient for users to set and adjust parameters.
Equipped with intuitive menu navigation, supporting quick operation and configuration.
Alarm function
Built in alarm system, displaying information on exceeding limits, faults, and system status.
Alarm signals can be sent to the central control system through the interface.
technical specifications
Parameter details
Display type: LCD display screen, supporting multiple lines of text and graphical interface
Communication interfaces RS-232, RS-485, CAN bus, Ethernet, etc
Input signal type: analog signal (current/voltage), digital signal
Output signal type: digital output, relay contact
Working power supply 24V DC or 230V AC
Working temperature range -20 ° C to+70 ° C
Installation method: panel installation or rack installation
Shell protection level IP65 or higher
application area
Ship automation
Used for status monitoring and control of ship engines and propulsion systems.
Integrated into the ship's comprehensive monitoring system, managing the operating parameters of multiple devices.
Ocean platform
Used to collect and display operational data of key equipment on offshore platforms.
Data collection and control
As a sensor interface module, it collects and processes environmental data such as temperature, pressure, and liquid level.
Alarm and status management
Provide alarm information for ships and marine systems to enhance operational safety.

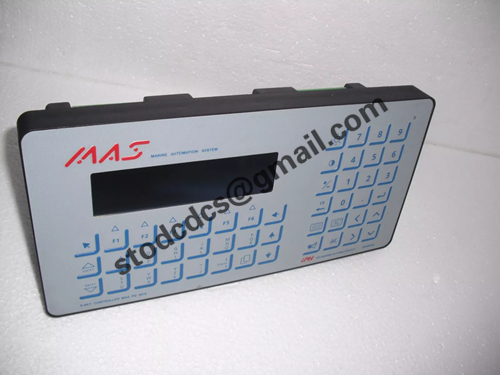

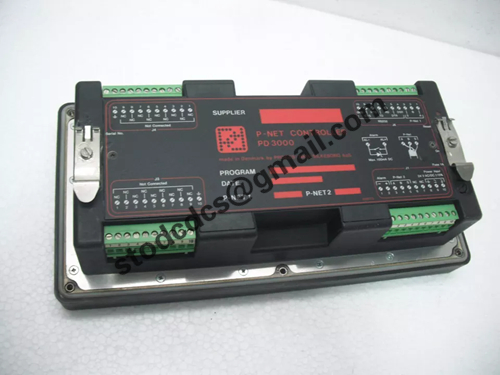

Product details picture:
