IC695ALG508-AA Resistance Temperature Detector

Product manual:

Main features:
Number of channels:
Provide 8 analog input channels and support simultaneous connection of multiple RTD sensors.
Accuracy and Resolution:
It has high precision and resolution, usually 16 bit resolution, to ensure the accuracy of temperature measurement.
Linearization and compensation:
The module has built-in linearization function, which can automatically convert RTD signals into actual temperature values.
Simultaneously supporting wire compensation function, it can eliminate measurement errors caused by RTD wire resistance and ensure measurement accuracy.
Diagnostic function:
Having self diagnostic capabilities, supporting sensor open circuit detection and system fault detection, helps to detect and solve problems in a timely manner.
Electrical isolation:
Provide electrical isolation between channels and systems, enhance anti-interference capabilities, and improve system reliability.
Technical specifications:
Model: IC695ALG508-AA
Input channel: 8-channel RTD analog input
Supported RTD types: PT100, PT1000, other standard RTDs
Measurement range: -200 ° C to+850 ° C (depending on RTD type)
Resolution: 16 bits
Electrical isolation: providing isolation between the system and input
Installation method: Installed in the RX3i rack, supporting DIN rail or rack installation
Interface: Connect to external RTD sensors using standard wiring terminals
Application scenarios:
Industrial process control: suitable for applications in industries such as chemical, petroleum, and natural gas that require high-precision temperature control.
Energy management: used for temperature monitoring in energy management systems to ensure that equipment operates within the optimal temperature range.
Manufacturing industry: Monitor and control temperature in various production processes to ensure product quality and process stability.
Advantages:
High precision temperature measurement: suitable for harsh industrial environments, ensuring accurate and reliable temperature measurement.
Multi input: Supports multiple RTD sensors simultaneously, suitable for large-scale temperature monitoring and control.
System compatibility: Seamless integration with GE Fanuc's PACSystems RX3i series system, simplifying configuration and operation.

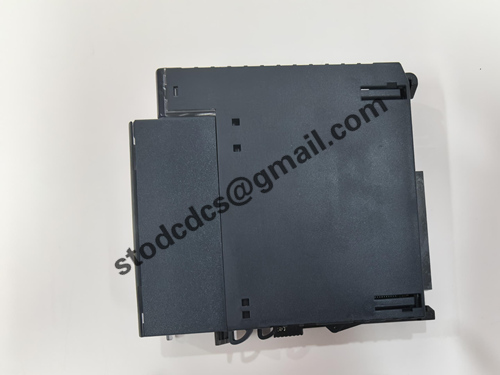

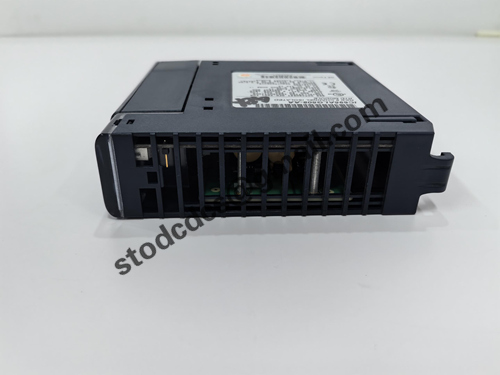

Product details picture:
