IC3600EPSCIB Relay Circuit Board

Product manual:

Function and Features
Relay control:
Manage multiple relay channels for device on/off operations.
Provide efficient current switching function, suitable for different types of loads.
Signal isolation:
Implement electrical isolation of signals to protect the control system from high voltage or current effects.
Modular design:
Plug in design, easy to install and maintain, seamlessly integrated with GE Mark series systems.
technical specifications
Relay channel:
Support multiple relay output channels, each channel can be independently controlled.
Electrical parameters:
Working voltage: commonly 24V DC or 110V AC.
Output power: Depending on the specific model, it may support switching currents of 5A or higher.
Interface type:
Standardized slots or terminal connections for easy connection with the main control system.
Work environment:
Working temperature:- 40 ° C to+70 ° C.
Humidity range: 5% -95% (without condensation).
Size and installation:
Standard size design, compatible with GE Mark series racks.
application area
Turbine control:
Control the execution of start-up, shutdown, and safety functions in gas or steam turbines.
Industrial automation:
Manage the on/off operation of pumps, valves, or motors.
Energy system:
Used for load switching and protection of power generation equipment or distribution systems.
Other control systems:
Used for industrial applications that require relay operation.
Maintenance and fault diagnosis
Regular inspection:
Check the wear of relay contacts and the physical condition of the circuit board.
Signal testing:
Use a multimeter to test the switch status of input signals and output relays.
Cleaning and maintenance:
Clean the dust on the circuit board and relays to avoid short circuits or overheating issues.
Fault handling:
If the relay cannot switch normally, check whether the power supply, input signal or load is normal.
Replacement and spare parts:
Replace the same model module when the relay fails or the circuit board is damaged.

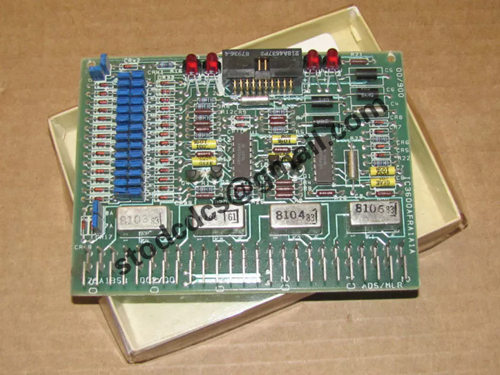

Product details picture:
