IC3600ADAD1 Analog Counter Card

Product manual:

GE IC3600ADAD1 is an Analog Counter Card used in GE's Speedtronic series control systems.
This module is mainly used for processing and counting analog signals, and is widely used in gas turbine and steam turbine control,
To perform precise measurement and signal processing tasks.
Product Features
Analog signal processing:
Capable of receiving and processing various analog input signals, such as voltage or current signals.
Counting function:
Provide high-precision counting function for monitoring system operation status, such as speed or cumulative operating time.
Modular design:
The plug-in module design can be directly installed in GE Speedtronic systems for easy integration and replacement.
High reliability:
Industrial grade design, suitable for operation in harsh environments.
Real time performance:
Support real-time counting and signal updates to ensure the timeliness of critical control tasks.
technical specifications
Input signal type:
Supports analog signal input (voltage or current, specific range depending on system configuration).
Counting range:
Supports counting from 0 to 65535 (16 bit counter).
Response speed:
Capable of processing high-frequency signal inputs, suitable for rapidly changing signal sources.
Working power supply:
24V DC or 48V DC (according to system requirements).
Environmental conditions:
Working temperature:- 20 ° C to+70 ° C.
Humidity: 0% -95% (no condensation).
Size and interface:
Standardized size, compatible with GE Speedtronic system.
Multi pin connector design ensures reliable connection with the main control system.
application area
Gas turbine control:
Monitor dynamic parameters such as turbine speed and gas flow rate.
Industrial automation:
Used for analog signal measurement and feedback in complex automation systems.
Power plant control:
Real time counting and monitoring of key parameters to improve equipment operational efficiency.

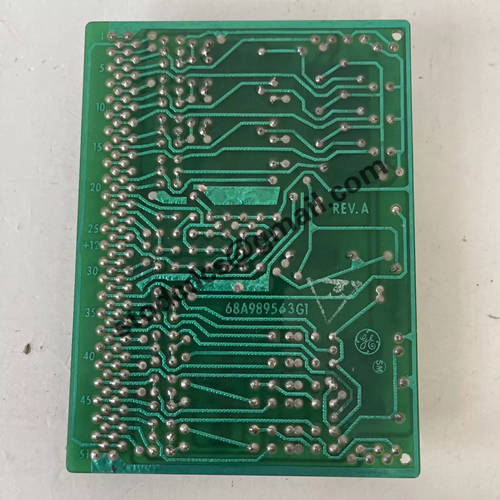

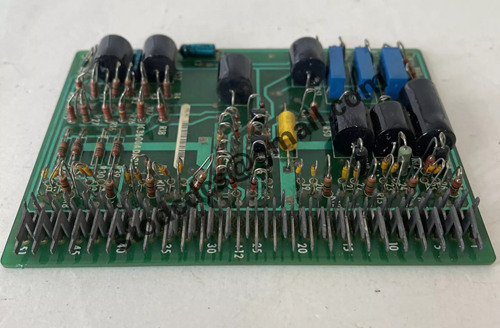

Product details picture:
