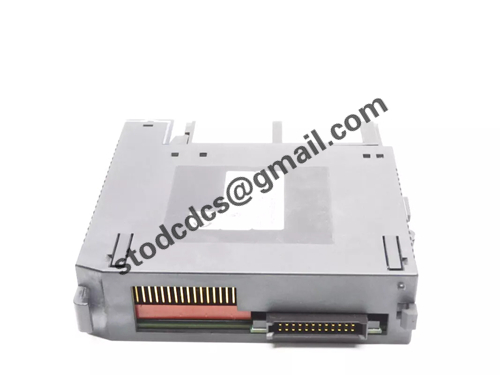

HORNER ELECTRIC HE693THM884J Logic Controller

Brand:Horner Electric
Model:HE693THM884J
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

HORNER ELECTRIC HE693THM884J Logic Controller

Product manual:

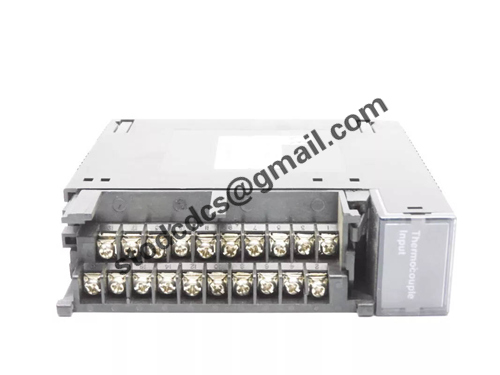

HORNER ELECTRIC HE693THM884J is a thermocouple input module designed for the GE Fanuc 90-30 PLC series.
It is specifically designed to receive temperature signals from thermocouple sensors and convert them into digital signals for PLC processing.

Main features:
Channel

Provide 8 independent thermocouple input channels that can simultaneously receive signals from multiple thermocouple sensors.

Each input channel supports multiple types of thermocouples, including K-type, J-type, T-type, E-type, R-type, S-type, B-type, and N-type.

Wide range of thermocouple types supported

Supports multiple thermocouple types such as K, J, T, E, R, S, B, N, etc.

Allow users to choose the appropriate thermocouple type for their application, flexibly applying it to different temperature ranges and accuracy requirements.

Temperature measurement range

Support temperature measurement range of various thermocouples:

K-type:- 270 ° C to+1372 ° C

J-type:- 210 ° C to+1200 ° C

T-shaped:- 200 ° C to+400 ° C

Type E:- 200 ° C to+900 ° C

R/S type: 0 ° C to+1768 ° C

Type B:+ 400 ° C to+1820 ° C

N-type:- 200 ° C to+1300 ° C

The measurement range of various thermocouples varies according to different models and is suitable for various industrial environments.

High precision and resolution

Accuracy: ± 0.25%

Resolution: Depending on the type of thermocouple, the resolution can reach 0.1 ° C or higher.

Real time data collection and processing

Support digital output, real-time transmission of temperature data to PLC system for further processing and decision-making by the control system.

Temperature data can be read and controlled through PLC programs.

Status indication and alarm function

Equipped with LED indicator lights to display module status, input signals, and fault warnings, facilitating real-time monitoring of equipment operation status by operators.

Provide alarm function to indicate equipment malfunction or abnormal temperature.
