HORNER ELECTRIC HE693RTD601R Input Module

Product manual:

HORNER ELECTRIC HE693RTD601R is an RTD (Resistance Temperature Detection) input module used in the GE Fanuc 90-30 PLC series to achieve multi-channel high-precision temperature signal acquisition and processing.

Main features:
compatibility

Suitable for GE Fanuc 90-30 PLC, inserted into the PLC rack as a temperature input module.

Compatible with Horner Electric automation system, providing reliable temperature measurement function.

Channel

Provide 6 input channels for RTD sensors, supporting simultaneous measurement by multiple RTD sensors.

Supported RTD types

100 Ω Platinum RTD (Pt100)

120 Ω Nickel RTD (Ni120)

10 Ω Copper RTD (Cu10)

measuring range

Pt100: -200°C ~ 850°C

Ni120: -80°C ~ 260°C

Cu10: -100°C ~ 260°C

Resolution and accuracy

Resolution: 0.1 ° C

Accuracy: ± 0.1% of full scale

Signal Processing and Filtering

Equipped with automatic cold end compensation to improve measurement accuracy.

Built in noise filtering function to reduce electromagnetic interference in industrial environments.

Communication and Data Processing

The collected temperature data can be directly accessed through the PLC logic program.

Support analog data conversion for temperature control and monitoring applications.

LED indicator light

It has input status and fault indication for easy maintenance and diagnosis.

Application areas:
Industrial Automation (Temperature Monitoring and Control)

Food processing (temperature recording and regulation)

HVAC system (heating, ventilation, air conditioning temperature control)

Chemical and metallurgical (process temperature monitoring)

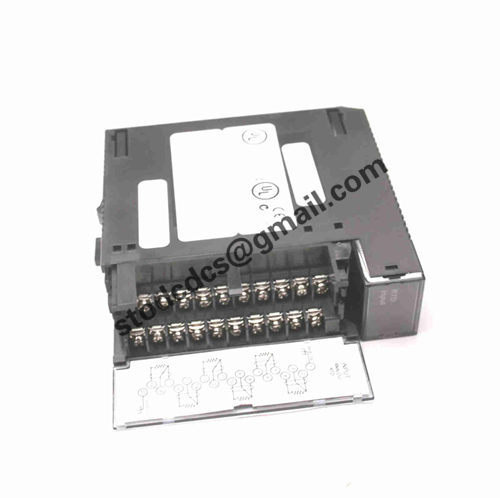

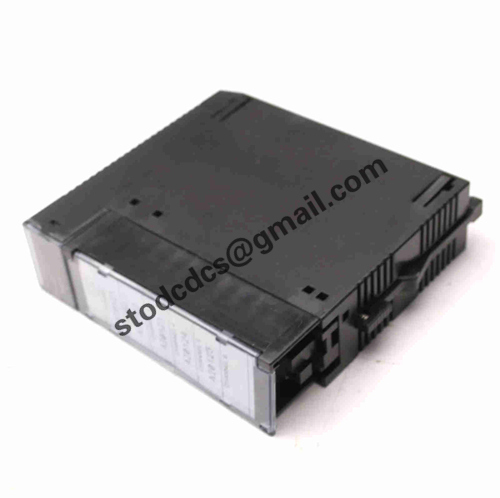

Product details picture:
