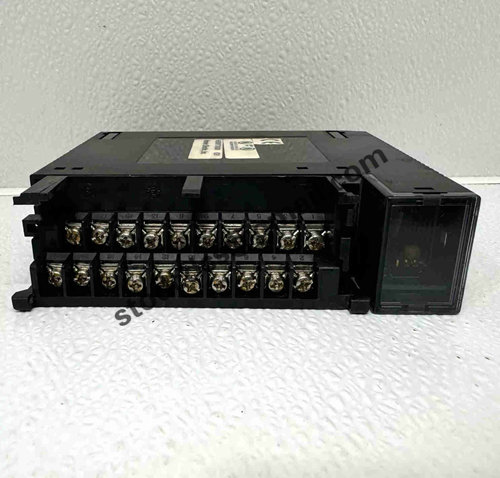

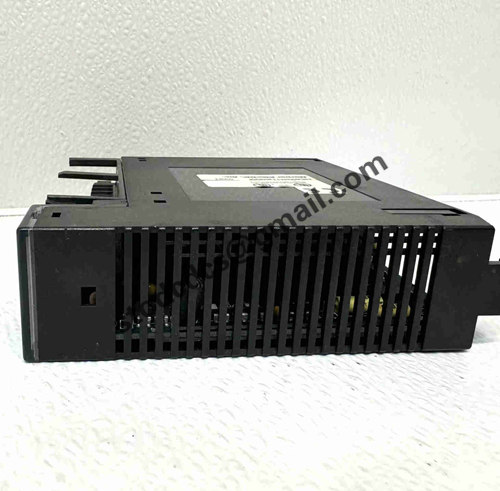

HORNER ELECTRIC HE693RTD600M Input Module

Brand:Horner Electric
Model:HE693RTD600M
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

HORNER ELECTRIC HE693RTD600M Input Module

Product manual:

HORNER ELECTRIC HE693RTD600M is an RTD (Resistance Temperature Detection) input module used in the GE Fanuc 90-30 PLC series to collect and process temperature signals. It supports multiple types of RTD sensors and is widely used in fields such as temperature monitoring, process control, and industrial automation.

Main features:
compatibility

Specially designed for GE Fanuc 90-30 PLC, easy to integrate into existing automation control systems.

Compatible with Horner Electric automation equipment, suitable for temperature monitoring in industrial environments.

Channel

Provide 6 RTD input channels and support simultaneous connection of multiple RTD sensors.

Supported RTD types

Supports multiple common types of RTD sensors, including:

Pt100 (100 Ω platinum RTD)

Pt1000 (1000 Ω platinum RTD)

Ni120 (120 Ω nickel RTD)

Cu10 (10 Ω copper RTD)

Temperature measurement range

Pt100: -200 ° C to+850 ° C

Pt1000: -200 ° C to+850 ° C

Ni120: -80 ° C to+260 ° C

Cu10: -100 ° C to+260 ° C

Accuracy and Resolution

Resolution: 0.1 ° C

Accuracy: ± 0.1% (varies depending on sensor type and measurement range)

Cold Junction Compensation

Adopting automatic cold end compensation technology to improve measurement accuracy and reduce the impact of external temperature changes on measurement.

Communication and Data Transmission

Provide digital output, which can access the collected temperature data through PLC program and perform real-time monitoring and control.

LED status indication

The module is equipped with LED indicator lights to display input status, fault warnings, and operating conditions for easy operation and maintenance.

Application areas:
Industrial Automation (Temperature Monitoring and Control)

Food processing (temperature control and monitoring)

HVAC system (HVAC temperature monitoring)

Chemical and pharmaceutical industries (process temperature management)

Energy and Electricity (Temperature Monitoring of Power Plants and Transmission Systems)
