Honeywell 51204156-175 Digital Output Module
Product manual:
Multi channel configuration: Supports up to 16 or more digital output channels, depending on the specific model.
Output signal type: usually a switch signal (on/off), used to control the on/off operation of external devices.
Insulation protection: Each channel has electrical isolation to prevent interference between signals and ensure the safety and reliability of the system.
4. Technical specifications
Model: 51204156-175
Output channels: typically 16 or more (depending on the specific model)
Output voltage: 24V DC (common), also supports other voltage ranges (depending on the specific model)
Current capacity: Typical value is 0.5A or higher per channel
Isolation voltage: Each channel has high voltage isolation (usually above 1500V AC) between them
Response time: Typical response time is less than 1ms
Operating temperature range: -40 ° C to+70 ° C, suitable for harsh industrial environments
Size: Standard size, easy to install in the control system rack
5. Application Fields
Factory automation: widely used in industrial automation control systems for controlling relays, indicator lights, and other equipment.
Energy management: Controlling the operation of critical equipment in the process of energy production and distribution.
Mechanical control: Used for digital signal control of automation equipment such as CNC machine tools and robots.
Modular design: facilitates integration with other modules in Honeywell control systems, achieving ease of system expansion and maintenance.
Flexible configuration: Supports control of multiple output devices, and users can flexibly configure output channels according to application requirements.
7. Installation and maintenance
Installation method: The module supports standard DIN rail or panel installation, simplifying integration with existing systems.
Wiring requirements: Each output channel typically needs to be grounded to ensure electrical safety during equipment operation.
Troubleshooting: Equipped with a fault indicator light, it can quickly diagnose faults in the output channel, making it convenient for users to troubleshoot and repair.

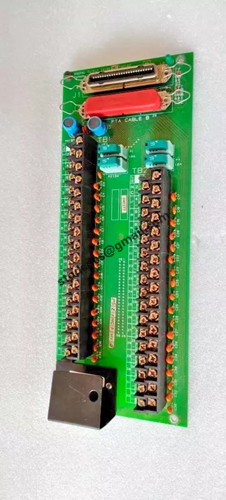

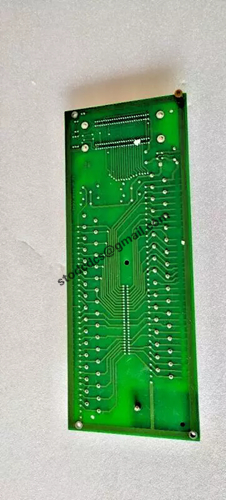

Product details picture:
