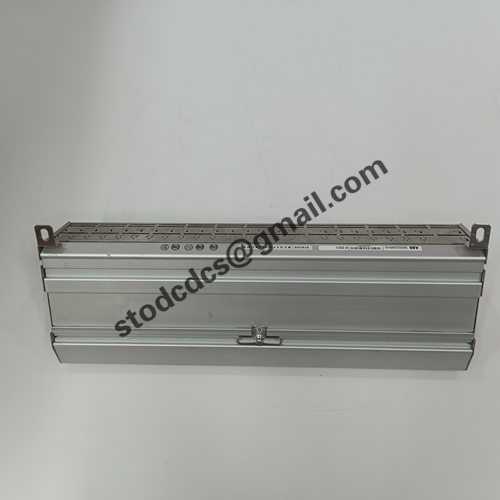

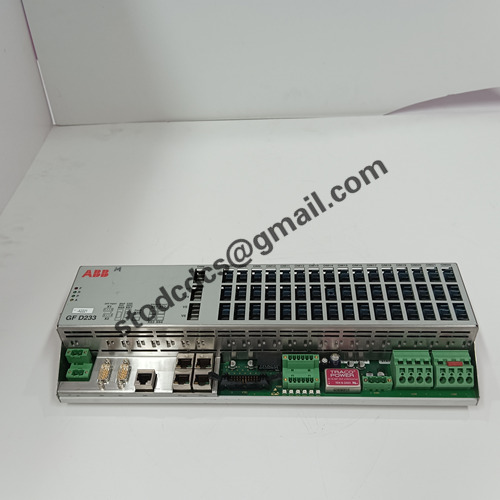

GFD233A103 3BH02294R0103 Controller

Brand:ABB
Model:GFD233A103 3BH022294R0103
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

GFD233A103 3BH02294R0103 Controller

Product manual:

GFD233A103 (order number: 3BH022294R0103) controller, the following is a detailed information summary:

1、 Basic Information
Product model: GFD233A103

Order Number: 3BH022294R0103

manufacturer: ABB

Equipment type: Controller module/Control unit

System: Commonly used in ABB Symphony Plus, INFI 90, or Freelance systems, and may also be used in ABB DCS submodule systems.

2、 Function and purpose
This module is a core controller in ABB control system, with the following functions:

Main control function: used for collecting process data, executing logic control, and communication management, it is the brain module of the automation system.

Data communication: Capable of communicating with upper level computers (such as HMI, SCADA) and lower level field devices.

Real time processing: supports high-speed logic judgment, data analysis, and instruction issuance, commonly used in the field of continuous process control.

Multi tasking: supports independent logical processing of multiple processes or subsystems.

3、 Technical parameters (reference)
Project parameter description
Power supply voltage 24V DC (powered by the base plate)
Installation method: Plug in module, DIN rail or dedicated rack
Multiple communication ports with interface types (such as RS485/Ethernet/MODBUS/ABB proprietary protocol)
System compatibility Symphony Plus INFI 90、 Or the Freelance series
Working temperature -25 ° C to+70 ° C (industry standard)
Redundancy support can support controller redundancy configuration (primary backup switching)
Programming configuration using ABB Control Builder or Symphony Plus Engineering tools
4、 Typical applications
Power plant control system (boiler control, turbine control, etc.)

Chemical process control

Automation of water treatment/sewage systems

Automation system for continuous production processes such as petrochemicals and steel

Process control part of ABB Symphony Plus system
