FPX86-9377-A capacitor
Brand:ABB
Model:FPX86-9377--A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
FPX86-9377-A capacitor
Product manual:
FPX86-9377-A is an industrial grade power capacitor mainly used for filtering, reactive power compensation, and energy storage in power electronic systems. The following is a detailed technical analysis:
1. Basic product information
Model identification: FPX86-9377--A
Type: Power electronic capacitor (presumably DC support/filtering capacitor)
Typical applications:
DC bus filtering of frequency converter
Inverter/Converter System
Power Factor Correction (PFC) for Industrial Power Sources
2. Core Features
✅ High power density design:
Adopting metalized thin film or electrolytic technology (specific confirmation required)
Compact structure, saving installation space
✅ High voltage/high current resistance:
Typical voltage level: 400VDC-1200VDC (specific specifications need to be verified)
Low ESR (Equivalent Series Resistance) Design
✅ Long lifespan:
Expected lifespan:>100000 hours @ rated conditions
Temperature range:- 25 ° C to+70 ° C (some models reach+85 ° C)
3. Typical application scenarios
(1) Industrial frequency converter
DC link circuit for ACS880/ACS800 and other frequency converters
Suppress DC bus voltage ripple
(2) New energy system
DC side energy storage of photovoltaic inverters
Intermediate circuit capacitor of wind power converter
(3) Power electronic equipment
Energy storage unit of UPS uninterruptible power supply
PFC circuit for industrial power supply

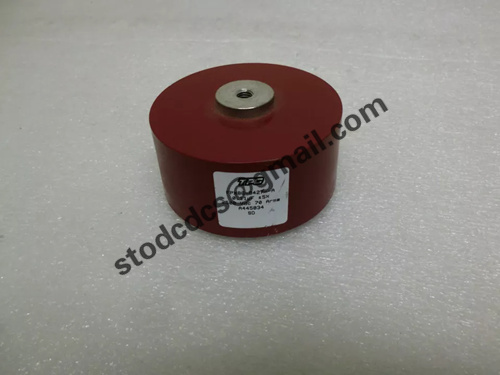

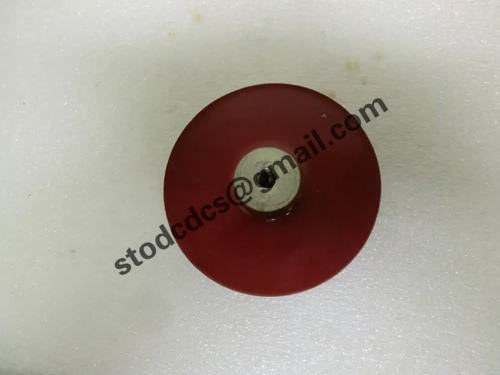

Product details picture:
