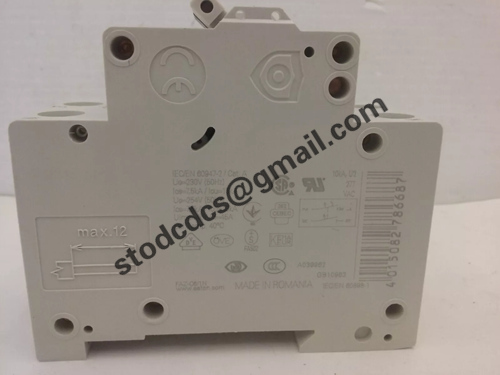

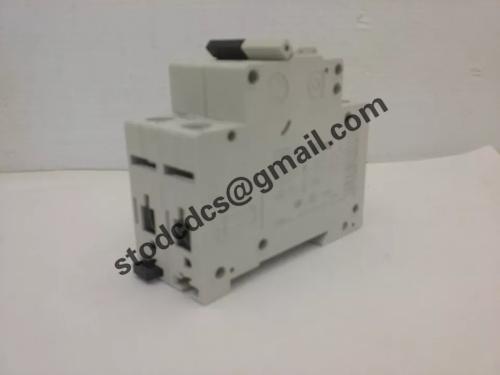

FAZ-C6/1 miniature circuit breaker

Brand:ABB
Model:FAZ-C6/1
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

FAZ-C6/1 miniature circuit breaker

Product manual:

FAZ-C6/1 is a single pole (1P) miniature circuit breaker produced by Weidm ü ller, belonging to the FAZ-C6 series, suitable for overload and short circuit protection in AC or DC low-voltage distribution systems.

2. Key parameters
Parameter specifications
Rated voltage (U ₙ) 230V AC/48V DC
Rated current (I ₙ) 0.5A-63A (specific model optional)
Breaking capacity (Icn) is usually 4.5kA (AC 230V)
Number of poles 1P (unipolar)
Release characteristics B type (electronic equipment), C type (conventional load), D type (motor type)
Mechanical lifespan ≥ 20000 operations
Wiring method: screw terminal/plug-in type (depending on the model)
Protection level IP20 (to be installed in the distribution box)
3. Main functions
Overload protection: prevents damage to the circuit due to prolonged overcurrent.

Short circuit protection: Quickly cut off fault current (4.5kA breaking capacity).

Manual switch: It can be manually opened and closed for easy maintenance.

4. Typical applications
Industrial control cabinet: PLC、 Inverter and sensor circuit protection.

Building electrical: lighting, socket circuit protection (AC 230V).

DC system: 24V/48V DC control circuit (such as relays, solenoid valves).

5. Installation and wiring
Installation method: Standard DIN rail (35mm) installation.

Wiring specifications:

Wire cross-sectional area: 0.75mm ² -25mm ² (depending on current specifications).

Torque: 1.2 N · m (recommended to use a torque screwdriver).

matters needing attention:

AC/DC cannot be mixed (corresponding voltage model needs to be selected).
