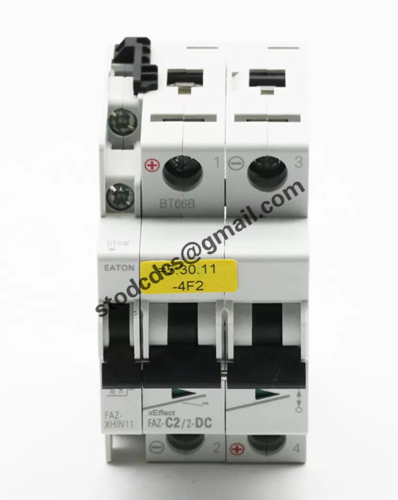

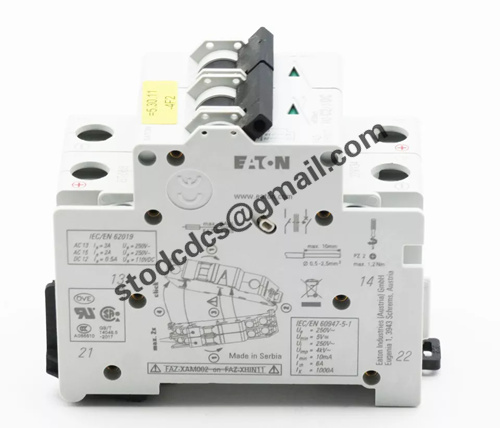

FAZ-C2/2-DC Circuit Breaker

Brand:ABB
Model:FAZ-C2/2-DC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

FAZ-C2/2-DC Circuit Breaker

Product manual:

FAZ-C2/2-DC is a 2-pole DC miniature circuit breaker produced by Weidm ü ller, suitable for overload and short-circuit protection in low-voltage DC distribution systems.

2. Key parameters
Parameter specifications
Rated voltage (U ₙ) 24V DC/48V DC
Rated current (I ₙ) 0.5A -10A (depending on the model)
Breaking capacity (Icn) typically ranges from 1kA to 3kA (depending on the model)
Release characteristics C type (conventional protection) or D type (motor protection)
Mechanical lifespan ≥ 10000 operations
Wiring method: screw terminal/plug-in type (depending on the model)
Protection level IP20 (to be installed in the distribution box)
3. Main functions
Overload protection: prevents damage to the circuit due to prolonged overcurrent.

Short circuit protection: Quickly cut off short-circuit current to protect equipment and circuits.

Manual switch: It can be manually opened and closed for easy maintenance.

4. Typical applications
Industrial automation: PLC、 Servo drive, DC power protection.

Photovoltaic system: DC side protection for solar panels.

Rail transit: 24V/48V DC control circuit protection.

Telecommunications equipment: DC distribution protection for base stations.

5. Installation and wiring
Installation method: DIN rail installation (standard 35mm).

Wiring specifications:

Use copper wires that meet the specifications (such as 1.5mm ²).

Ensure correct polarity (L+/L -).

matters needing attention:

Avoid using in damp and corrosive environments.
