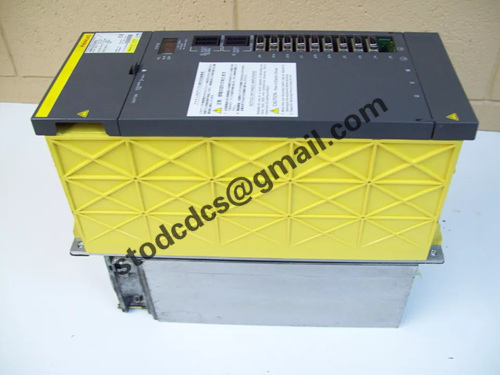

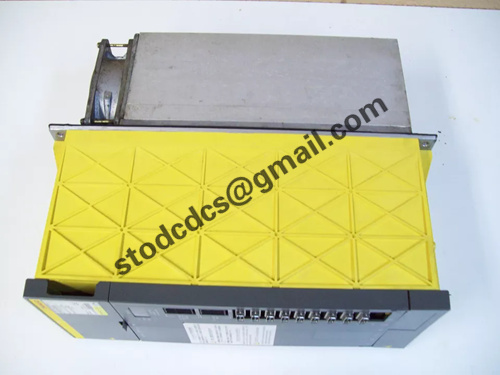

FANUC A06B-6102-H222 # H520 servo amplifier

Brand: FANUC
Model: A06B-6102-H222#H520
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ABB 086339-501 control card

Product manual:

FANUC A06B-6102-H222 # H520 is an α i series servo amplifier module widely used in FANUC CNC machine tools, automated production lines, and robot systems, providing high-precision and high response servo drive capabilities.
1. Product Overview
Manufacturer: FANUC
Product type: Servo Amplifier Module
model: A06B-6102-H222#H520
Applicable systems: FANUC 0i, 16i, 18i, 21i, 31i series CNC controllers
Applicable motors: FANUC α i series servo motors (such as α iS, α iF, α iM)
Main purpose:
CNC machine tools (milling machines, lathes, grinders, etc.)
Industrial automation production line
Robot motion control
2. Technical parameters
Parameter Description
Input voltage 200-240V AC (three-phase)
Output current suitable for medium power FANUC servo motors
Cooling method: air cooling or forced air cooling
Control mode position control, speed control, torque control
Protection functions include overcurrent, overheating, undervoltage, and short circuit protection
A06B-6102-H222 # H520 is typically used for medium power CNC equipment, providing drive support for 2-axis or 3-axis servo motors.
3. Product features
High precision control: supports high-speed and high response servo control to improve machining accuracy.
Stable and reliable: FANUC servo system operates stably for a long time, suitable for high-intensity industrial applications.
Intelligent diagnostic function: It can detect fault codes and quickly repair them through the CNC control system.
Modular design: supports replacement and maintenance, suitable for different FANUC servo systems.
