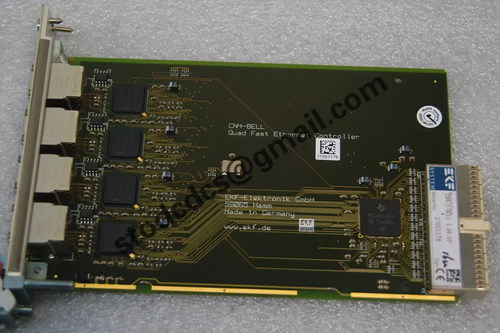

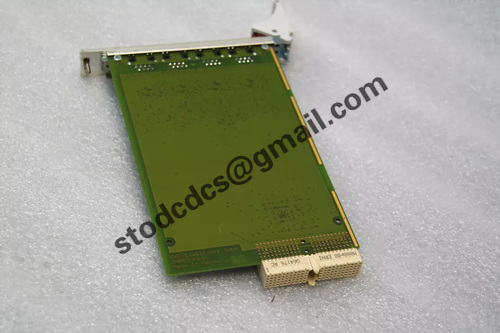

EKF ETH4 CN4-BELL Ethernet Controller

Brand: EKF
Model: ETH4 CN4-BELL
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

EKF ETH4 CN4-BELL Ethernet Controller

Product manual:

EKF ETH4 CN4-BELL is an industrial grade Ethernet controller module launched by EKF Corporation, used for high-performance data transmission, network communication, and embedded system applications. This module adopts a high bandwidth Ethernet interface and is suitable for industrial automation, embedded systems, real-time control, and data acquisition fields.
1. Product Overview
manufacturer: EKF Elektronik GmbH
Product model: ETH4 CN4-BELL
Device type: Ethernet Controller
Main functions:
Provide high reliability industrial grade Ethernet connectivity
Compatible with standard TCP/IP network protocols
Suitable for real-time industrial control systems
Support high data throughput and low latency communication
Adopting embedded architecture design to optimize energy consumption
2. Main technical parameters
Parameter specifications
Interface type Gigabit Ethernet
Multiple port configuration (depending on model)
Data rate 10/100/1000 Mbps
The network protocol supports TCP/IP UDP、Modbus-TCP、EtherNet/IP
Transmission mode: full duplex/half duplex
Installation method: rack mounted/slot mounted
Operating system compatibility with Windows Linux、VxWorks、RTOS
Power input 3.3V or 5V DC (depending on the specific model)
Working temperature -40 ° C to+85 ° C (industrial grade)
EMC anti-interference meets the industrial standard EN55022 IEC61000
Physical dimensions comply with CompactPCI/PXI standards
3. Main features
✅ High performance industrial Ethernet connection
Supports 10/100/1000 Mbps speeds to meet different industrial network requirements
Low latency data transmission, suitable for real-time control applications
Support VLAN and QoS, optimize network performance
✅ Compatible with multiple protocols
Industrial protocols such as TCP/IP, UDP, Modbus TCP, EtherNet/IP, etc
Suitable for PLC SCADA、 Embedded computers and other industrial equipment
✅ High reliability&anti-interference design
Industrial grade design, supporting wide temperature operation from -40 ° C to+85 ° C
Adopting EMC anti-interference shielding, in compliance with IEC61000 standard
Suitable for fields such as electricity, rail transit, petrochemicals, automation control, etc
✅ Modular&Scalable Design
Compatible with CompactPCI/PXI slots for easy integration
Expandable multiple Ethernet ports to meet high-density network requirements
